Figure 4

ID: ZDB-IMAGE-230630-40
Publication: Wang et al., 2023 - The ndrg2 Gene Regulates Hair Cell Morphogenesis and Auditory Function during Zebrafish Development
All Figures: Figures for Wang et al., 2023


Figure Caption

Figure 4

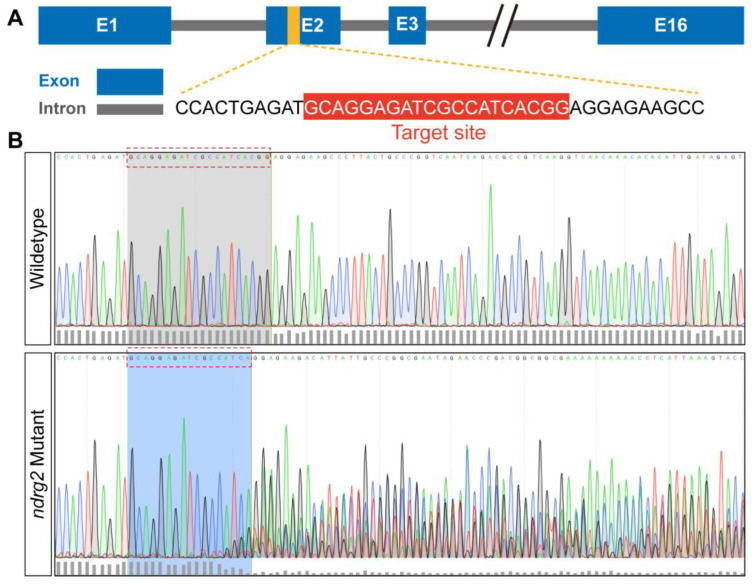

CRISPR/Cas9-mediated ndrg2 mutation was successfully generated at the target site. (A) Schematic diagram of zebrafish (Danio rerio) ndrg2 genomic structure and ndrg2-specific sgRNA targeting exon 2 in the CRISPR/Cas9 system. (B) Multiple mutations occurred at the target site in ndrg2 mutants in comparison with wild-type zebrafish.
