ZFIN Image: Venuto et al., 2023, Fig. 6.


Figure Caption

Fig. 6.

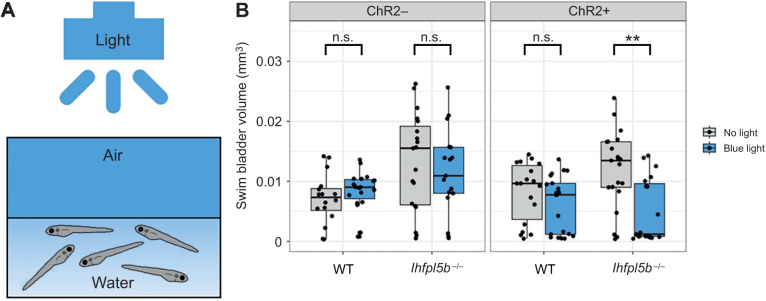

Optogenetic activation of lateral line hair cells with Channelrhodopsin-2 (ChR2) in wild-type and lhfpl5b mutant larval zebrafish. (A) Diagram of experiment with blue light stimuli delivered for 25 ms at 1 s intervals. Treatments were started at 4 dpf and swim bladder volume was assessed at 6 dpf. (B) Swim bladder volume (mm³) of larvae at 6 dpf, n=16–21 per condition. One-way ANOVA was used to determine significance. **P<0.001; n.s., not significant. Complete ANOVA and Tukey statistics are available in Table S1.
