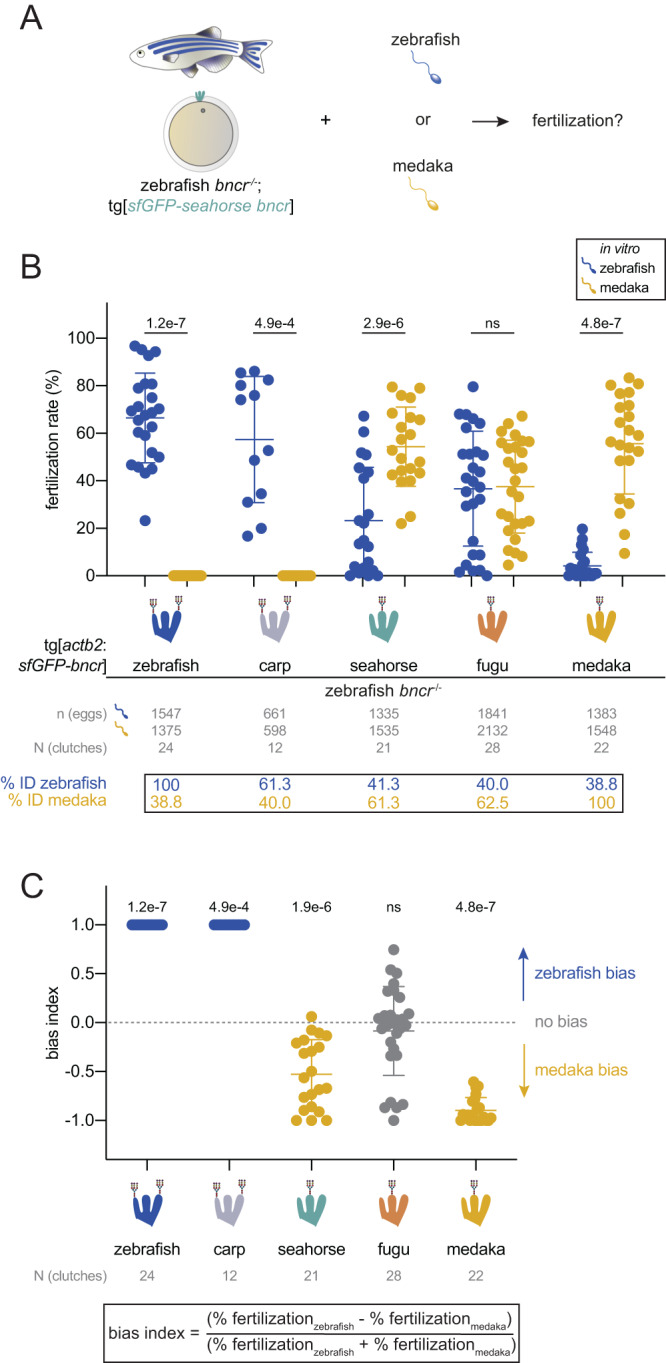

Fig. 2 Medaka and zebrafish sperm are compatible with multiple Bncr orthologs.

A Experimental setup for performing comparative medaka/zebrafish IVF with transgenic zebrafish bncr^−/− eggs expressing different fish Bncr orthologs. B IVF data obtained from transgenic zebrafish bncr^−/− lines expressing either zebrafish, carp, seahorse, fugu, or medaka Bncr with medaka vs. zebrafish sperm. N-glycans are depicted on each Bncr ortholog as sugar chain symbols on each glycosylated finger. (Two-tailed Wilcoxon matched-pairs signed rank test with the method of Pratt; ns not significant). C Plot of the bias index values derived from the IVF data in (A). The formula for the bias index is shown. (Two-tailed Wilcoxon signed rank test vs. theoretical median of 0 with the method of Pratt). Means ± SD are indicated in (B) and (C).
