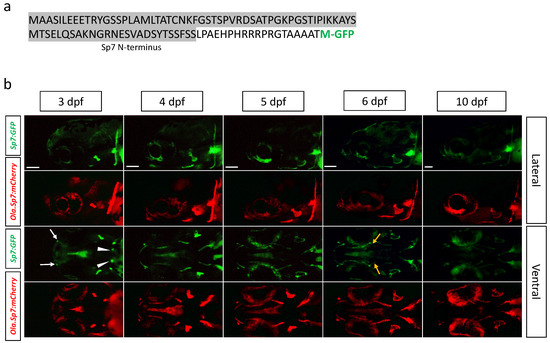

Figure 2. GFP expression in the Tg(sp7:sp7-GFP) transgenic line. (a) N-terminal end of the fusion protein produced by the Tg(sp7:sp7-GFP) transgenic line, with the predicted signal peptide in grey and the original GFP translational start site (M) in green. (b) Transgene expression in the Tg(sp7:sp7-GFP) and the previously described Tg(Ola.Sp7:mCherry) lines tracked in the head region (top: lateral view and bottom: ventral view) from 3 dpf to 10 dpf. Earlier transgene expression occurs in the maxillary (white arrows) and pharyngeal tooth buds (white arrowheads) at 3 dpf and in the entopterygoid (yellow arrows) at 6 dpf of the Tg(sp7:sp7-GFP) line. The scale bars, given in the left bottom corner of the images in the top row, correspond to 100 µm.
