Figure Caption

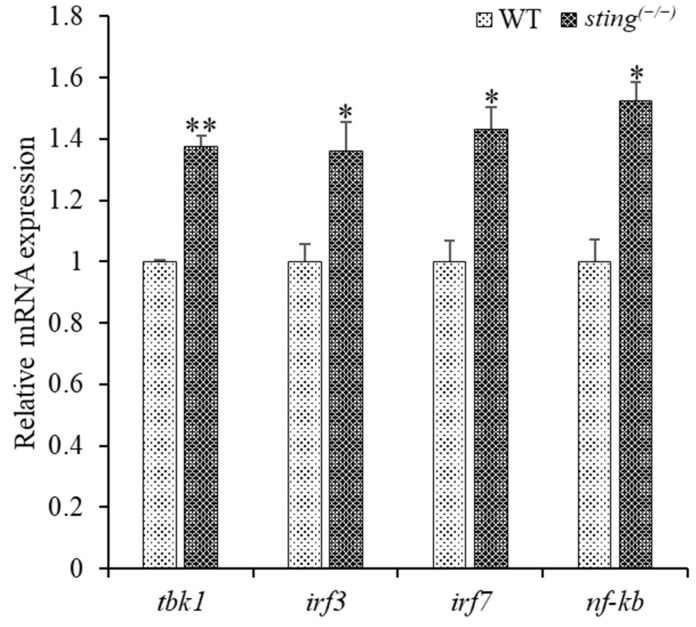

Figure 2
Comparison of transcription of downstream genes in 7 dpf larvae of sting(−/−) and WT zebrafish. The internal control gene, β-actin, was used to analyze the relative mRNA expression of genes downstream of sting using the Livak method. Experiments were performed in triplicate, and the error bar represents the standard deviation (SD). Student’s t-tests were used for statistical analysis, and p < 0.01 (indicated by *) and <0.001 (indicated by **) were considered statistically significant.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Biomolecules
