Figure 2

ID
ZDB-IMAGE-230124-112
Source
Figures for Zeng et al., 2023
Figure Caption

Figure 2

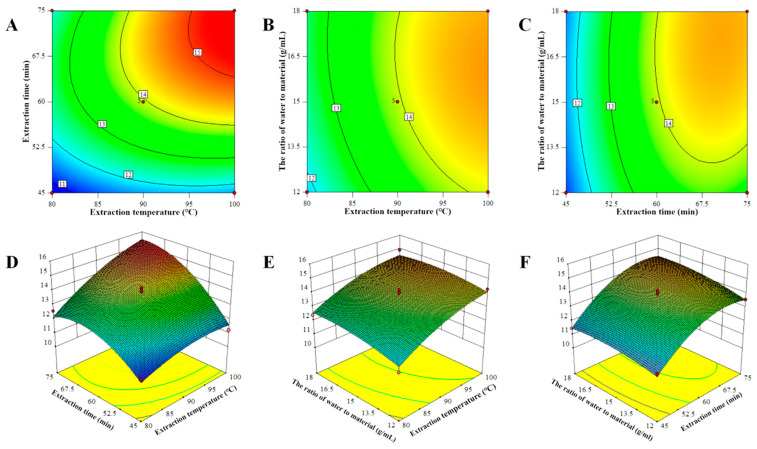

Three-dimensional response surface plots and two-dimensional contour plots showing the effect of interactions between variables on polysaccharide extraction yields. (A,D) display the influence of the extraction temperature and the time on the extraction yield of LBPs; (B,E) display the influence of the extraction temperature and the ratio of water to material on the extraction yield of LBPs; (C,F) display the influence of the time and the ratio of water to material on the extraction yield of LBPs.
