Figure 2—figure supplement 1.
- ID
- ZDB-IMAGE-230123-16
- Source
- Figures for Sabharwal et al., 2022
|
Figure Caption
Figure 2—figure supplement 1.

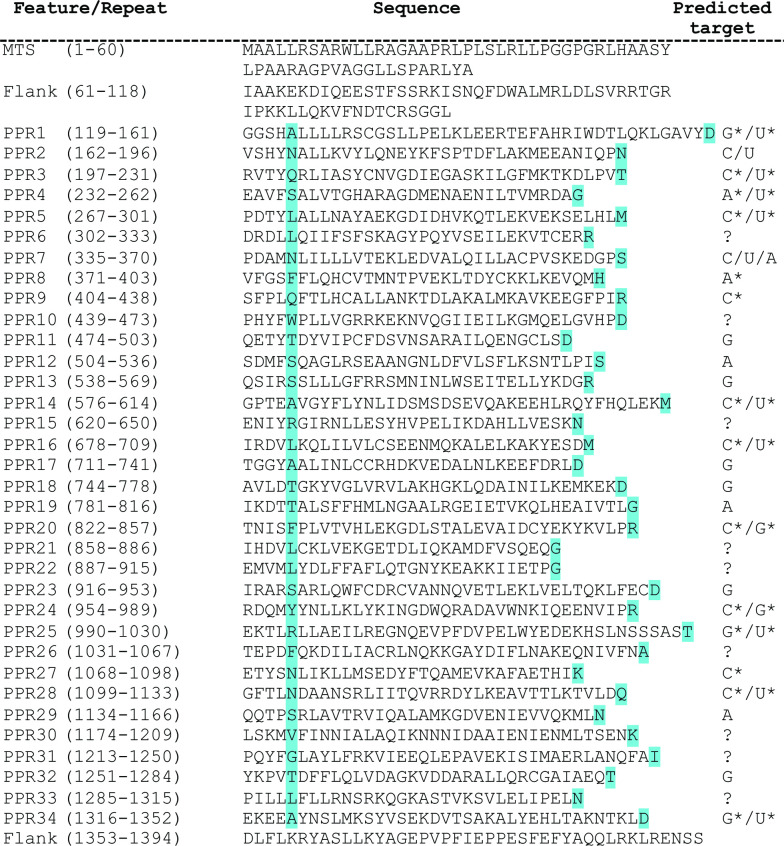

Domain organization of human LRPPRC predicted from structural and sequence analysis.
Structure-based prediction of PPR motifs. PPR sequences and comprehensive residues are represented on the left. The cyan color highlighted amino acids specify the RNA binding of PPR motifs. The predicted target ribonucleotides for each motif are presented on the right. The targets with and without the star marks are high confidence and speculative predictions, respectively. We put the corresponding question mark sign where the prediction for the PPR motif was not sure.
