Fig. 7

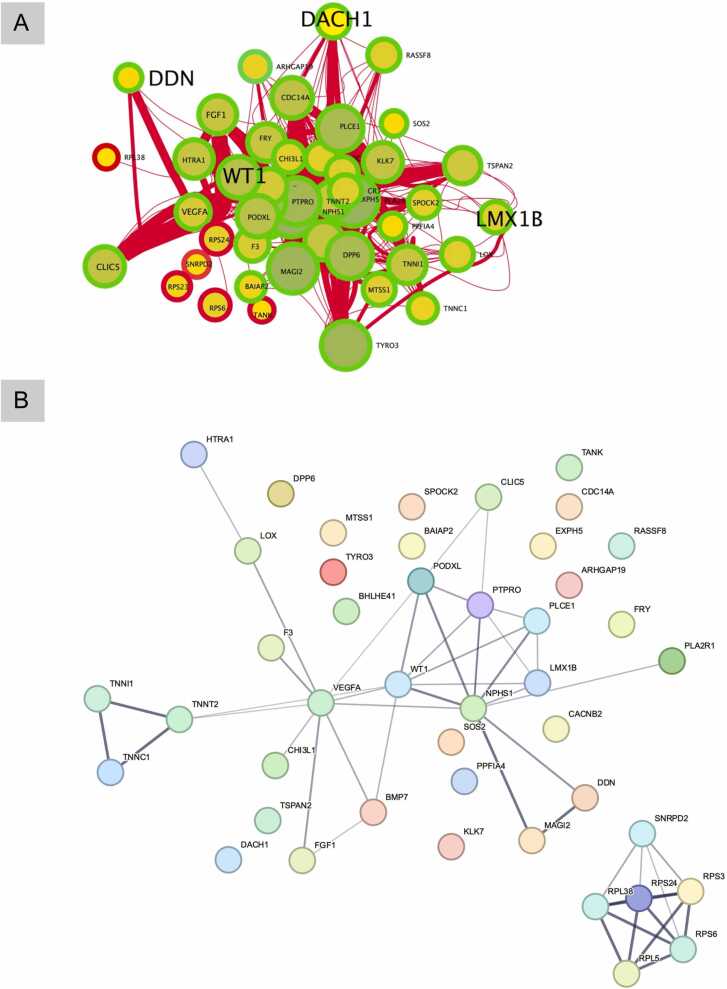

Network clustering of podocyte-differentiation-related differentially expressed genes in human DN kidney tissue compared with healthy controls. The size of each circle is proportional to the number of gene interactions, and the thickness of the edges represents mutual information between genes (A). Network cluster enriched for podocyte function with TFs in bold text. The interactions between the genes were also confirmed by STRING network (B).
