Fig. 9

ID: ZDB-IMAGE-221226-349
Publication: Vettkötter et al., 2022 - Rapid and reversible optogenetic silencing of synaptic transmission by clustering of synaptic vesicles
All Figures: Figures for Vettkötter et al., 2022


Figure Caption

Fig. 9

Comparison of tools for optogenetic silencing of synaptic transmission.

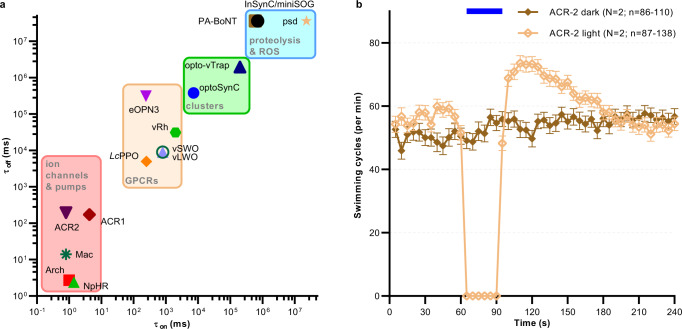

a Matrix showing time constants (activity on- and offset) of optogenetic tools for synaptic inhibition. Tools are grouped by their molecular nature/mechanism of action. Data was derived from refs. ¹³^,¹⁸^,¹⁹^,²²^–²⁴^,²⁷^,²⁸^,³⁰^,³⁸^,⁸²^,⁸³b ACR2 expressed in C. elegans cholinergic motor neurons evokes rapid and complete inhibition of locomotion, associated with sustained after-effects. Mean (±s.e.m.) swimming cycles of animals expressing ACR2. Number of individual animals (n) across each measured time point and across N = 2 independent experiments (animals picked from N independent populations) is indicated as range.
