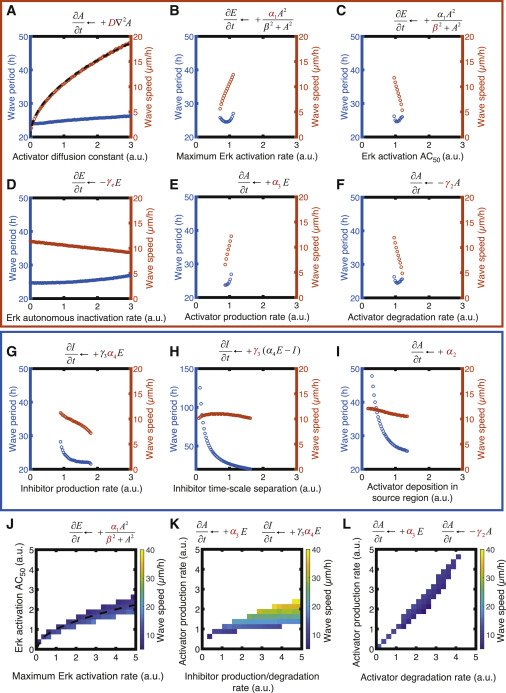

Figure 2. Parameter analysis and sensitivity. Wave speed and period varying the parameters of the model: D (A), α₁ (B), β (C), γ_e (D), α₃ (E), γ₂ (F), α₄ (G), γ₃ (H), and α₂ (I) individually and covarying α₁/β (J), α₃/α₄ (K), and α₃/γ₂ (L). Parameters are expressed relative to the reference value in our standard simulation (see Table 1). Predicted dependencies in (A) and (J) are plotted as dashed black curves: (A) v = v₀D^1/2, where v₀ = 11 μm/h is velocity for the standard set of parameters and D is expressed in relative units; (J) β = α₁^1/2. Wave speed and period are calculated for regions of parameter space that feature periodic persistent waves. Orange box: parameters that affect mainly wave speed. Blue box: parameters that affect mainly wave period. Please note that γ₁ and α₄ together determine the action of the inhibitor by controlling its activity toward Erk and its levels, respectively. Thus, the dependencies of the wave period and speed on those parameters are identical, and the plot for γ₁ was omitted. To see this figure in color, go online.
