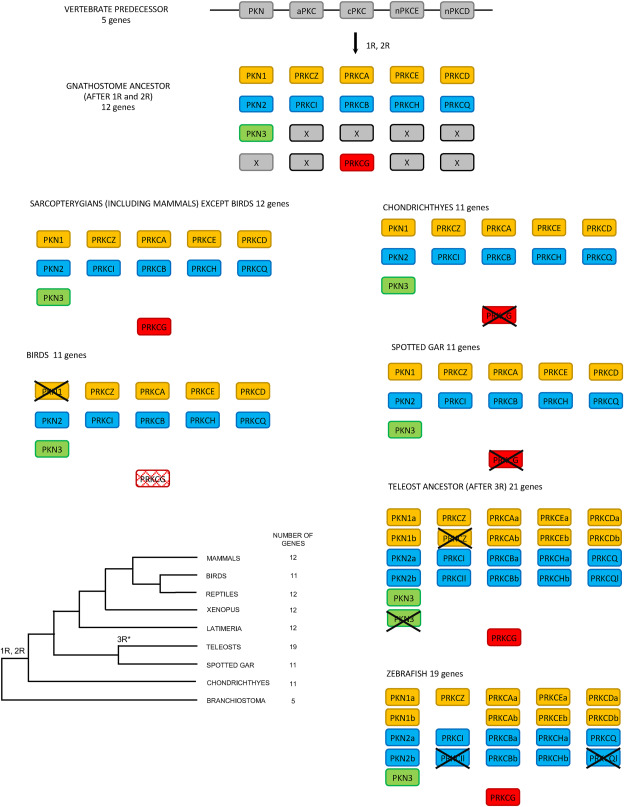

Fig. 8 Fig. 8. Proposed evolution of the PKC family following the 1R and 2R tetraploidizations and after 3R in teleosts. The scheme shows how the fourth ohnolog of the PKN and cPKC subfamilies was lost after 2R. For the two subfamilies of nPKCs and the aPKCs, two scenarios are possible: either one ohnolog was lost after 1R or two ohnologs were lost after 2R. Of the 12 genes that existed before 3R, 7 have retained 3R ohnologs while 5 were lost leading to 19 genes.
