Figure 4

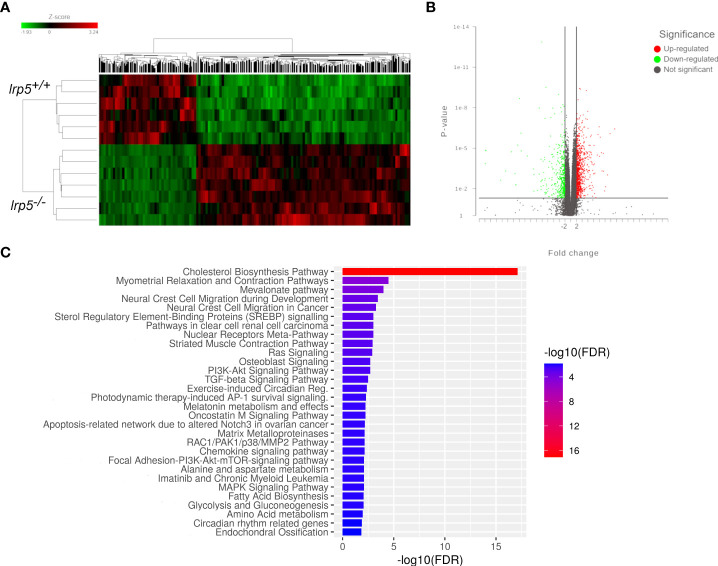

RNA-seq results. (A) The overall distribution of differentially expressed genes in the cranial bones between the lrp5^+/+ and lrp5^−/− groups. Red and green represent up-regulated and down-regulated transcripts, respectively, in the clustering analysis. The color intensity is directly proportional to the change. (B) The volcano plot shows DEGs in the lrp5^−/− cranial bones. The red part indicates up-regulated genes, and the green part indicates down-regulated genes. (C) Box plot of pathway analysis for all DEGs.
