FIGURE 3

ID: ZDB-IMAGE-220921-71
Publication: Field et al., 2022 - Involvement of transmembrane protein 184a during angiogenesis in zebrafish embryos
All Figures: Figures for Field et al., 2022


Figure Caption

FIGURE 3

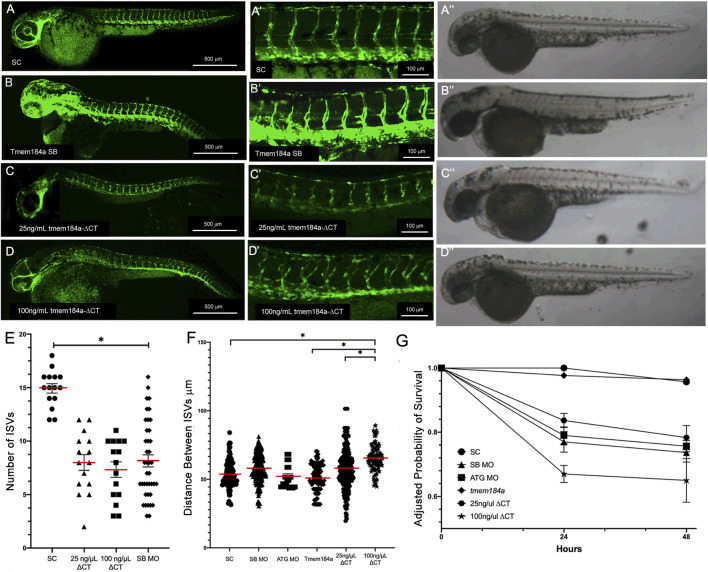

Removing HS binding domains negatively affects Angiogenesis. Embryos were injected with (A,A′) SC MO (n = 20) (C,C′) 25 ng/μL tmem184a ΔCT (n = 60) or (D,D′) 100 ng/µL tmem184a ΔCT (n = 60) and evaluated at 48 hpf as described in Methods. SB results are shown for comparison (B,B′). (A′′–D′′) illustrate brightfield images from identically treated embryos. Graph (E) illustrates the intact ISVs in SC, tmem184a -ΔCT at either concentration. p < 0.001 (F) The distance between ISVs was measured for each treatment using Image J. P < 0.001 (G) Embryo survival for all treatments illustrated relative to 24 h survival of SC embryos.
