Figure 3

ID: ZDB-IMAGE-220920-31
Publication: Meyer-Miner et al., 2022 - Resolving primary pathomechanisms driving idiopathic-like spinal curvature using a new katnb1 scoliosis model
All Figures: Figures for Meyer-Miner et al., 2022


Figure Caption

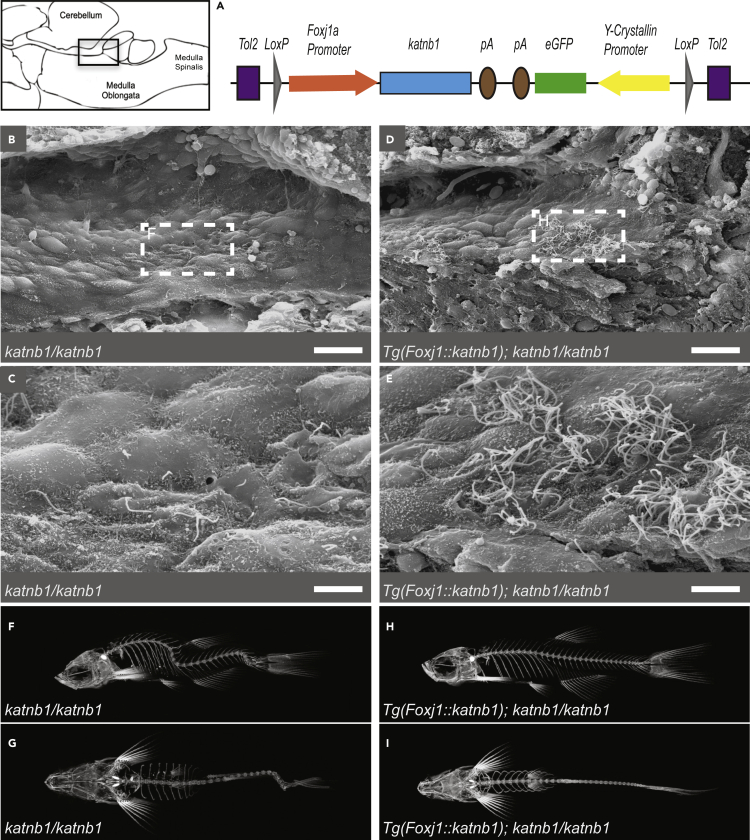

Figure 3

Re-introduction of Katnb1 in foxj1a-positive cell lineages suppresses scoliosis

(A) Schematic of Tg(foxj1a::katnb1) construct.

(B–E) SEM images of the rhombencephalic ventricle of 3 month old katnb1^mh102/mh102 (B & C; N = 4, n = 11) and Tg(foxj1a::katnb1); katnb1^mh102/mh102 (D & E; N = 4, n = 10) fish. (B, D) Scale bar, 20 μm. Square indicates higher magnification location. (C, E) Scale bar, 5 μm.

(F–I) Representative microCT projections of 3-month-old katnb1^mh102/mh102 (F & G; N = 17, n = 68) and Tg(foxj1a::katnb1); katnb1^mh102/mh102 (H & I; N = 8, n = 73) mutant zebrafish in sagittal (F & H) and coronal (G & I) planes.

Figure Data

Phenotype details

Construct: Tg(LOXP-foxj1a:katnb1,cryaa:EGFP-LOXP)
