ZFIN Image: Ratanayotha et al., 2022, Fig. 5


Figure Caption

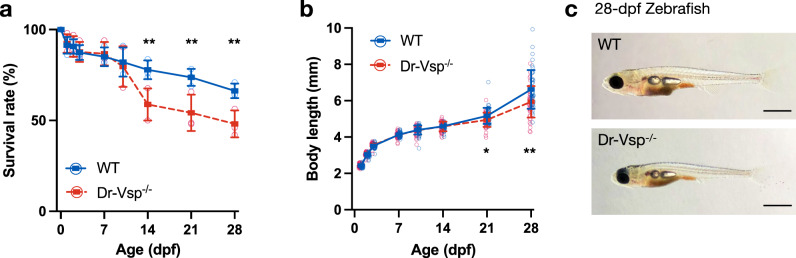

Fig. 5

Phenotypic investigation of Dr-Vsp^?/? zebrafish.

a Survival rates of wild-type and Dr-Vsp^?/? zebrafish larvae during the first month of age. Zebrafish larvae, 300 at D0 for each zebrafish line. All statistical data were collected from three independent experiments. b Body length of wild-type and Dr-Vsp^?/? zebrafish larvae raised under a non-calorie-restricted standard diet. Zebrafish larvae on the first day (D0) is 45 for wild-type and 44 for Dr-Vsp^?/? zebrafish. Error bars, means � SD; *P < 0.05; **P < 0.01; unpaired Student?s t-test. c Brightfield images of the representative wild-type (WT) and Dr-Vsp^?/? zebrafish larvae at 28 dpf, raised under the same conditions. Scale bar = 1 mm.

Figure Data

Phenotype details
