Figure Caption
Fig. 3

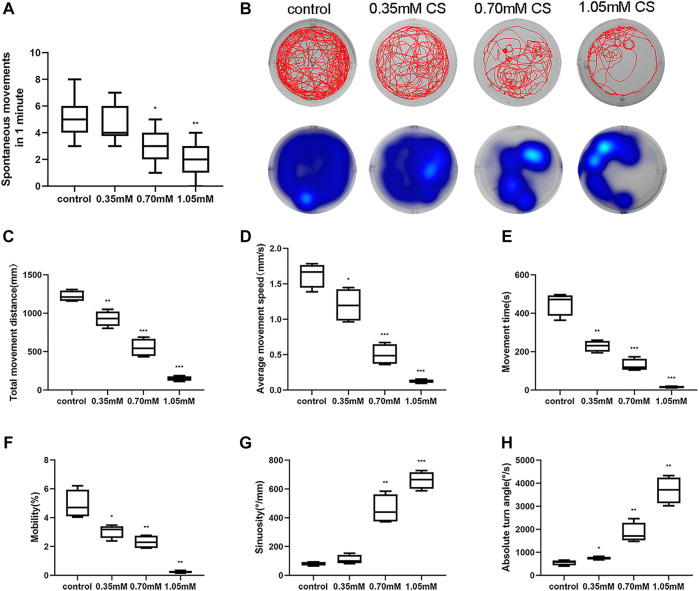

Disordering spontaneous movement and locomotor after cysteamine exposure. (A) Spontaneous tail coiling of 24 hpf embryos exposed to 0.35, 0.70, and 1.05 mM cysteamine. (B) Locomotion tracks (above) and residence time in different regions (below) of larvae exposed to 0.35, 0.70, and 1.05 mM cysteamine at 120 hpf. (C) Total distance. (D) Average speed. (E) Movement time. (F) Mobility, the frequency of high-mobile. (G) Sinuosity. (H) Absolute turn angle. The horizontal line in each box represents the average value. *p < 0.05, **p < 0.01, ***p < 0.001, mean ± S.D.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Front Pharmacol
