Fig 6 Reduced SCC allows for elevated mitotic recombination derived LOH.

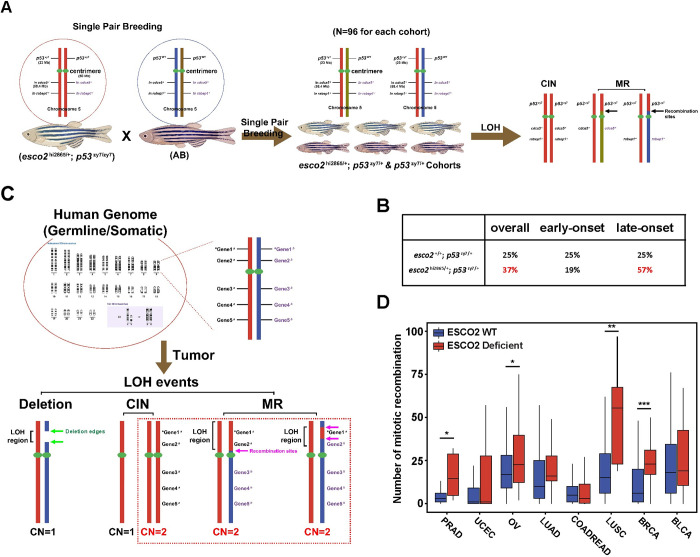

(A) Schematic of determining LOH mechanisms/types in p53 heterozygous tumors. The haplotype of nearby p53 marker in tumor and normal paired samples, cooccurring with p53 wild-type or mutant gene are labeled (left). (B) A table showing the percentage of mitotic recombination (MR) in esco2^+/+; p53^zy7/+ and esco2^hi2865/+; p53^zy7/+ tumors. (C) Schematic of determining the mitotic recombination with TCGA database. Figure A and C were created with BioRender.com. (D) The number of mitotic recombination in TCGA cancer samples with or w/o ESCO2 mutation/deletion. Genome-wide data was downloaded from NCI Genomic Data Commons. The number of WT and deficient samples in each tumor were indicated: PRAD: 481 WT + 6 Deficient; UCEC: 479 WT + 43 Deficient; OV: 383 WT + 46 Deficient; LUAD: 495 WT + 10 Deficient; COADREAD: 482 WT + 38 Deficient; LUSC: 478 WT + 8 Deficient; BRCA: 935 WT + 29 Deficient and BLCA: 393 WT + 13 Deficient. *, ** and *** indicate p<0.05, p<0.01 and p<0.001 from Mann-Whitney test.
