Figure Caption

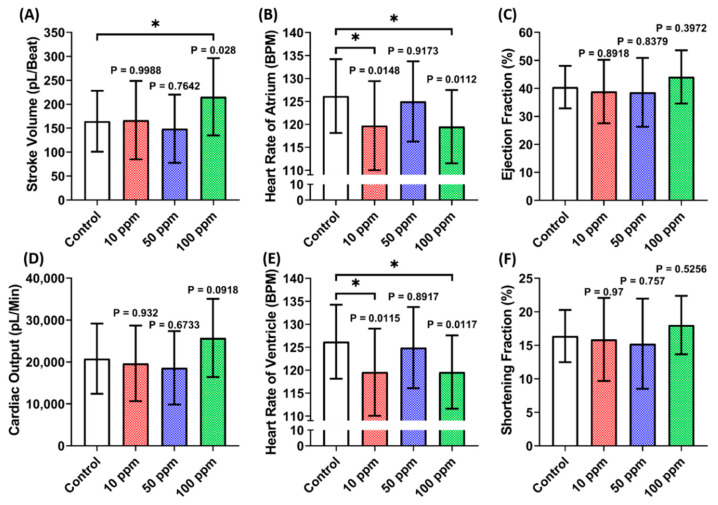

Fig. 2 Cardiac physiology parameter endpoints ((A) Stroke volume, (B) heart rate of atrium, (C) ejection fraction, (D) cardiac output, (E) heart rate of ventricle, and (F) shortening fraction) of zebrafish larvae at 72 hpf after 24 h incubation in 10, 50, and 100 ppm of p-Toluene Sulfonamide (p-TSA). The statistical difference was calculated using Ordinary One-Way ANOVA with Dunnet multiple comparison test. The data are expressed as mean with SD (n = 29; * p < 0.05).
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Biomolecules
