Fig. 3

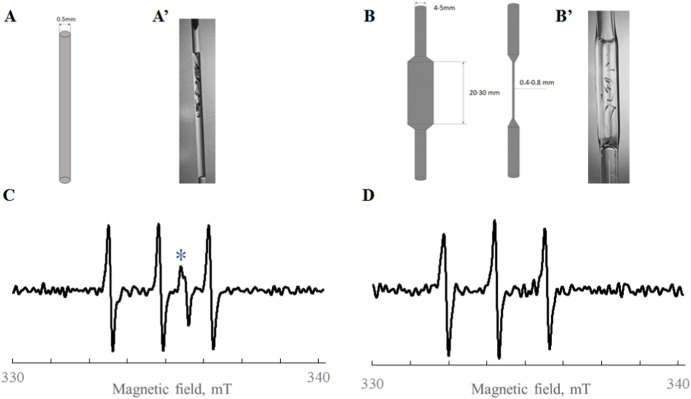

Fig. 3. Newly designed specially-shaped capillaries improve the detection of free radicals in living zebrafish embryos. Schematic view of the capillaries (A, B) and photograph (A′, B′) of a standard 100 μL hematocrit capillary (A, A′) and the prototype of the specially-shaped capillary (B, B′). Cw-EPR signal from 10 μM 3-CP probe recorded with eSpect+: C. standard 100 μL capillary, signal-to-noise = 23, and D. specially-shaped flat capillary, signal-to-noise = 18. The signal form glass impurities is marked with an asterisk (*). EPR parameters were 20dB/MA-500μT/ST-11s/16sc.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Reprinted from Free radical biology & medicine, 183, Makarova, K., Zawada, K., Wiweger, M., Benchtop X-band electron paramagnetic resonance detection of melanin and Nitroxyl spin probe in zebrafish, 69-74, Copyright (2022) with permission from Elsevier. Full text @ Free Radic. Biol. Med.
