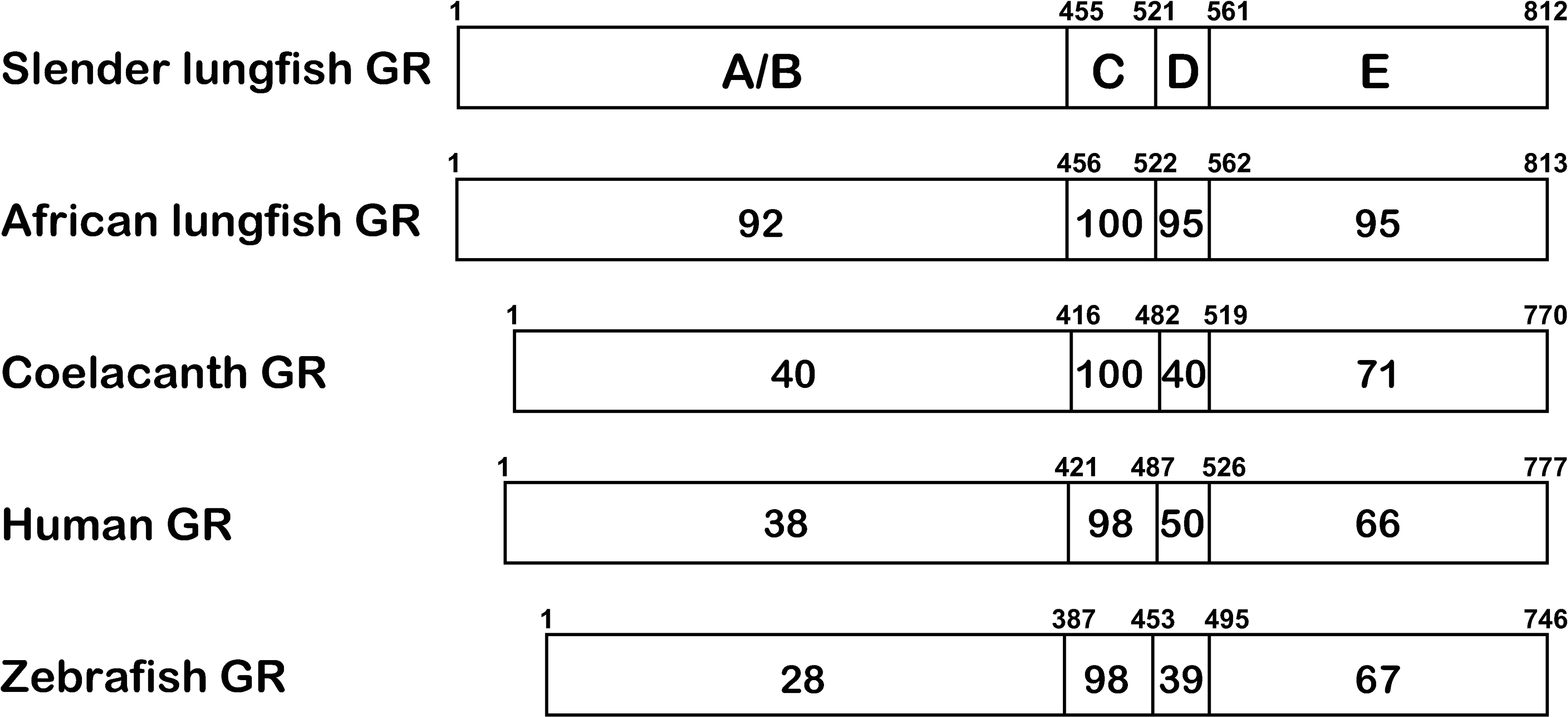

Fig. 4 Fig 4. Comparison of functional domains of slender lungfish GR with domains in West African lungfish GR, coelacanth GR, zebrafish GR, human GR.
Comparison of domains in slender African lungfish GR with GRs from West African lungfish, coelacanths, humans and zebrafish and MRs from slender African lungfish, West African lungfish, humans and zebrafish. The functional NTD (A/B), DBD (C), hinge (D) and LBD (E) domains are schematically represented with the numbers of amino acid residues and the percentage of amino acid identity depicted.
