Figure 6

ID: ZDB-IMAGE-220730-30
Source: Figures for Petersen et al., 2022


Figure Caption

Figure 6

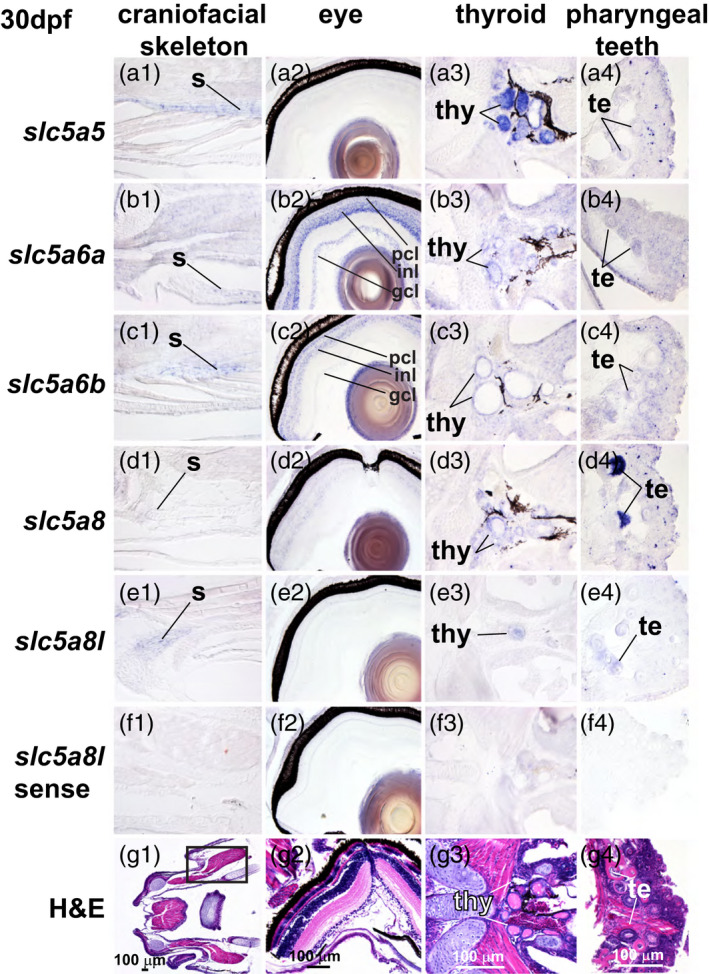

Expression patterns of slc5a5 clade genes in the head of 30 dpf threespine stickleback. (a) slc5a5, (b) slc5a6a, (c) slc5a6b, (d) slc5a8, (e) slc5a8l, and (f) slc5a8l sense strand as control, and (g) H&E‐stained histological sections shown in the craniofacial skeleton, eye, thyroid, and pharyngeal teeth. Imaged at 400X. gcl, ganglion cell layer; inl, inner nuclear layer; pcl, photoreceptor cell layer; te, teeth; thy, thyroid follicles; s, skeletal tissue
