ZFIN Image: Meier et al., 2022, Fig. 3


Figure Caption

Fig. 3

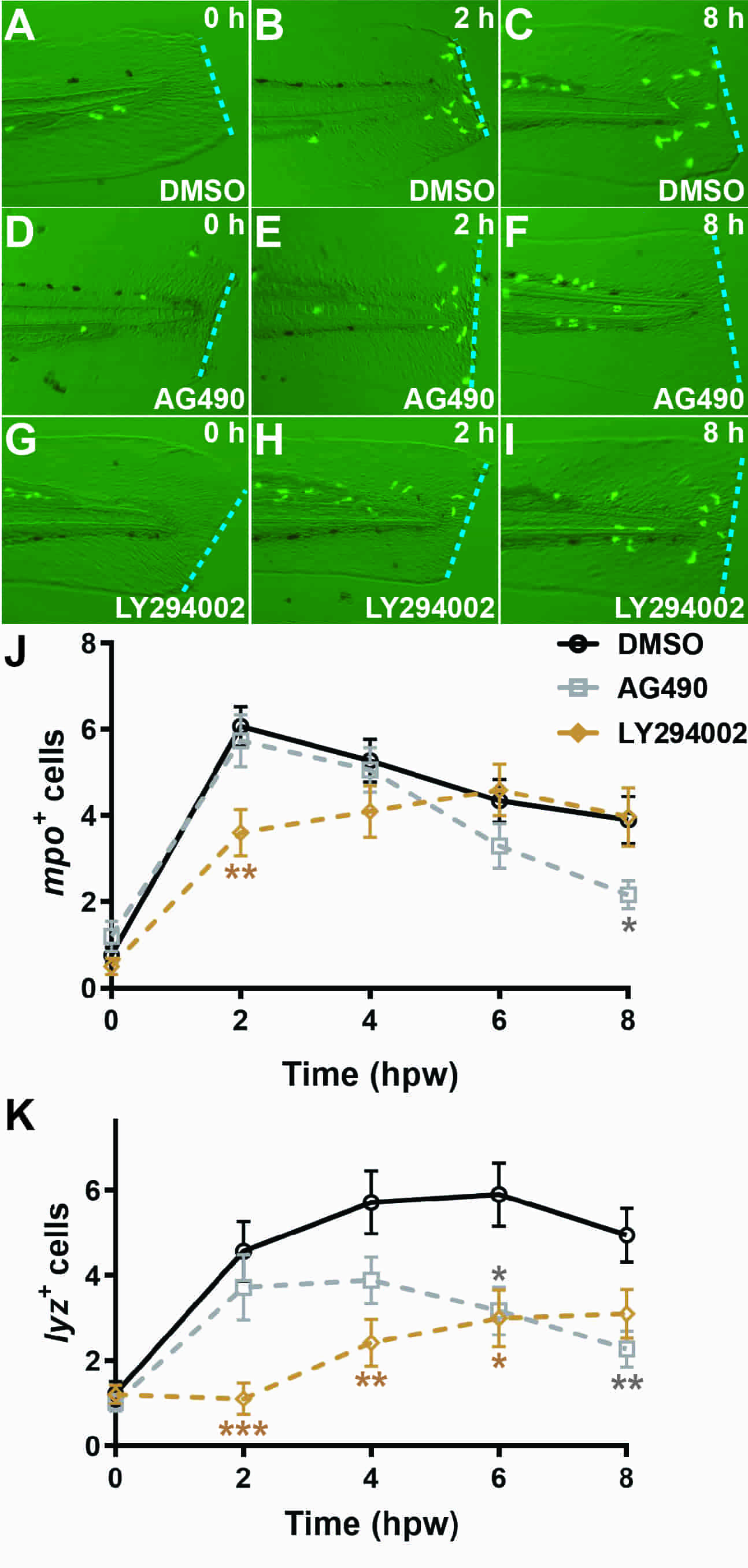

Role of alternative G-CSFR pathways in response to wounding. (A?I) Fluorescent microscopy images of representative Tg (mpo::GFP) embryos pre-treated with either DMSO (A?C), AG490 (D?F) or LY294002 (G?I) at the indicated times post wounding. (J,K) Quantitation of recruitment of mpo+ (J) and lyz+ (K) cells to the wounding site at 0, 2, 4, 6 and 8 hours post wounding (hpw) in Tg (mpo::GFP) and Tg (lyz::DsRed) embryos, respectively, that had been pre-treated with the indicated inhibitors, showing mean and S.E.M. along with statistical significance of inhibitor in comparison to DMSO control (*: p $<$ $<$ 0.05; **; p $<$ $<$ 0.001; ***: p $<$ $<$ 0.0001; n = 15+).
