Fig. 4
- ID
- ZDB-IMAGE-220607-35
- Publication
- Varela et al., 2022 - Cdkl5 mutant zebrafish shows skeletal and neuronal alterations mimicking human CDKL5 deficiency disorder
- All Figures
- Figures for Varela et al., 2022
|
|
Figure Caption
Fig. 4

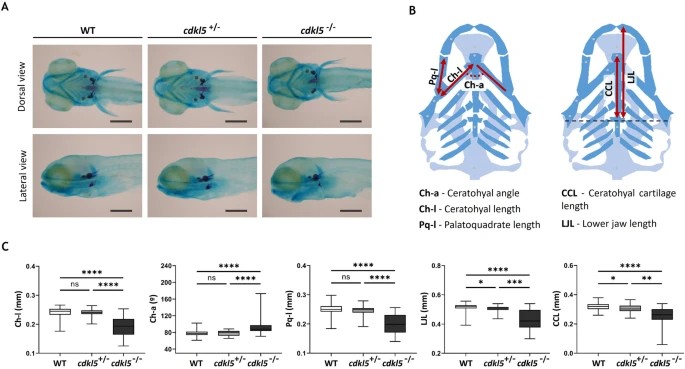

Craniofacial development of cdkl5sa21938 mutants with 5 dpf. (A) Representative images of the wild-type (WT), heterozygous (cdkl5+/−), and homozygous (cdkl5−/−) embryos double-stained with alcian blue and alizarin red. Scale bar = 0.3 mm. (B) Illustration of the analyzed craniofacial cartilage parameters.
