ZFIN Image: Ding et al., 2022, Figure 3


Figure Caption

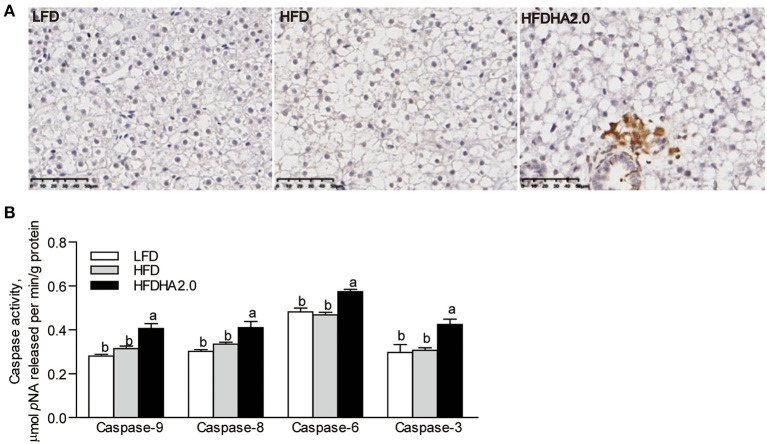

Figure 3

The effects of DHA on liver apoptosis in zebrafish. (A) Tunnel staining of liver sections of LFD, HFD, or HFDHA2.0-fed zebrafish. The scale bar is 50 μm. (B) The activities of caspase-9, caspase-8, caspase-6, and caspase-3 in LFD, HFD, or HFDHA2.0-fed zebrafish. The values are means ± SEMs (n = 6 biological replicates). The mean values without a common letter are significantly different, p < 0.05. LFD, low-fat diet; HFD, high-fat diet; HFDHA2.0, 2% DHA-supplemented HFD.
