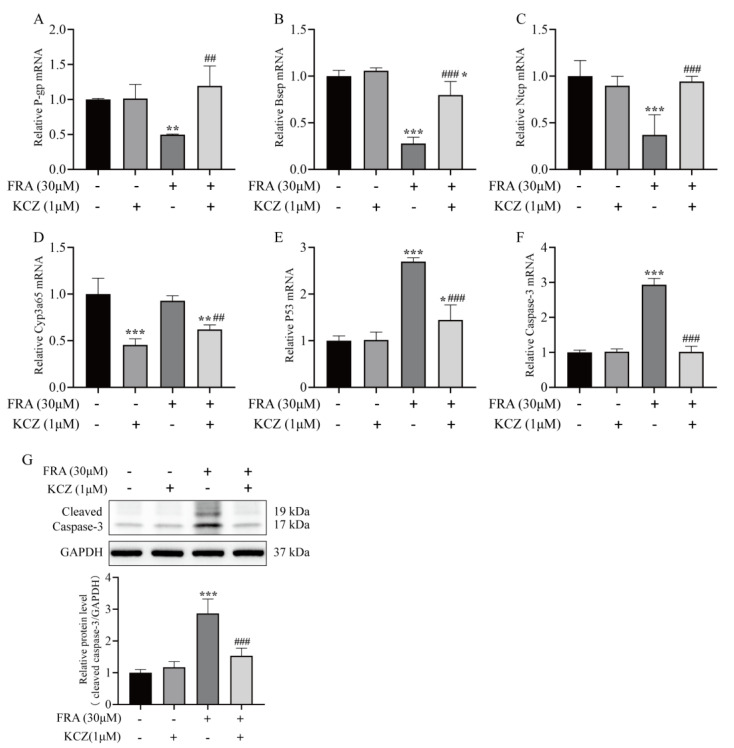

Figure 7

KCZ altered the expression patterns of transporter and apoptotic proteins inhibited by FRA. The mRNA expression levels of P-gp (A), Bsep (B), Ntcp (C), Cyp3a65 (D), p53 (E), and caspase-3 (F) were detected by qRT-PCR analysis. (G) The protein expression level of cleaved caspase-3 was detected by western blot analysis. Data are presented as the mean ± SD. Each experiment was performed 3 times with 40 randomly selected zebrafish larvae. * p < 0.05 vs. control; ** p < 0.01 vs. control; *** p < 0.001 vs. control; ^## p < 0.01 vs. FRA + KCZ; ^### p < 0.001 vs. FRA + KCZ.
