ZFIN Image: Wang et al., 2022, Figure 6


Figure Caption

Figure 6

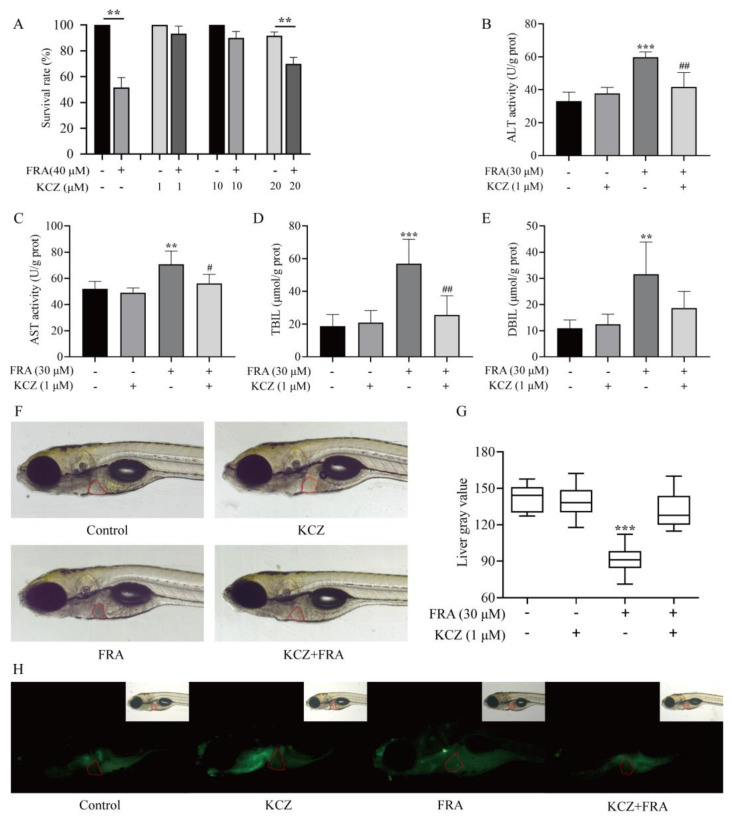

Inhibitory effects of KCZ against FRA-induced hepatotoxicity. (A) KCZ reduced FRA-induced mortality of zebrafish larvae. The biochemical indices of ALT (B), AST (C), TBIL (D), and DBIL (E) decreased significantly after KCZ treatment. (F–H) Morphological observation and AO staining to determine the degree of liver injury and apoptosis. Data are presented as the mean ± SD. Each experiment was performed 3 times with 40 randomly selected zebrafish larvae. ** p < 0.01 vs. control; *** p < 0.001 vs. control; ^#p < 0.05 vs. FRA + KCZ; ^##p < 0.01 vs. FRA+KCZ.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Molecules
