Figure 2

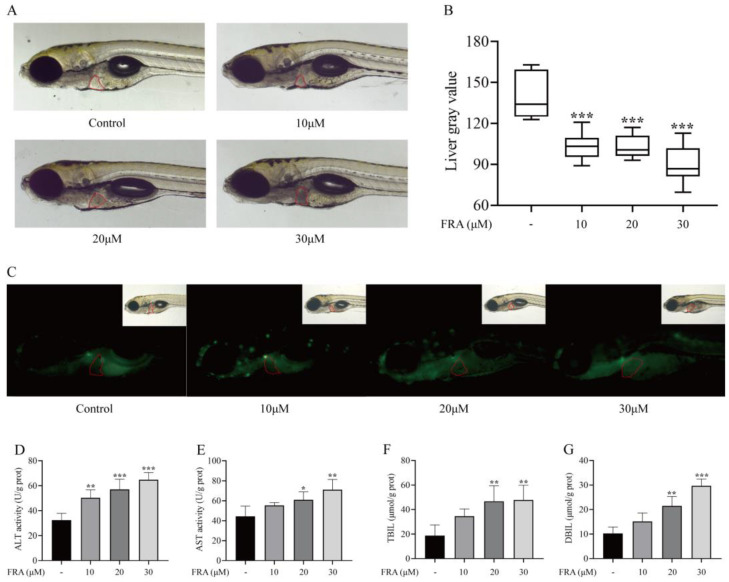

Hepatotoxic effects of FRA on zebrafish larvae. Treatment with different concentrations of FRA for 48 h blackened the liver area of zebrafish larvae (A) and increased the gray value (B). AO staining showed that the proportion of apoptotic hepatocytes had increased (C). Changes to levels of ALT (D), AST (E), TBIL (F), and DBIL (G) in zebrafish larvae treated with FRA for 48 h. Data are presented as the mean ± SD. Each experiment was performed 3 times with 40 randomly selected zebrafish larvae. * p < 0.05 vs. control; ** p < 0.01 vs. control; *** p < 0.001 vs. control.
