Fig. 7

ID: ZDB-IMAGE-220507-9
Publication: Reichmann et al., 2022 - Transcriptomic underpinnings of high and low mirror aggression zebrafish behaviours
All Figures: Figures for Reichmann et al., 2022


Figure Caption

Fig. 7

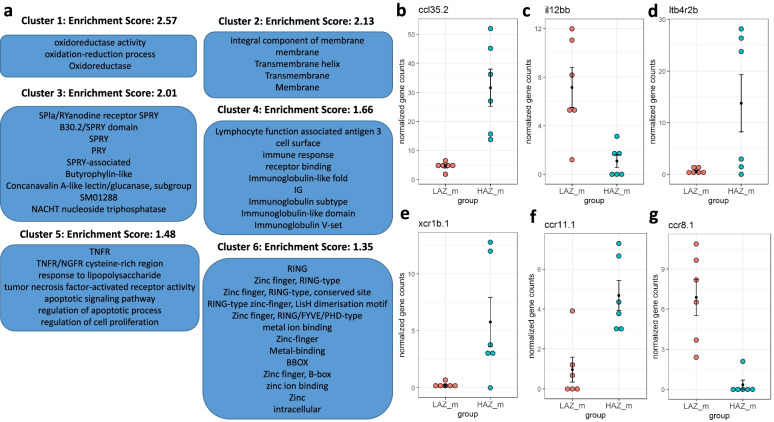

Enriched clusters and functional categories between the most aggressive male high aggression zebrafish (HAZm) and the least aggressive male low aggression zebrafish (LAZm). a Functional annotation clustering using DAVID pathway analysis revealed 5 significantly enriched clusters (enrichment score ≥ 1.3). Annotation terms related to each cluster are displayed in blue boxes. b-g DEGs with known important immunomodulatory functions present in one or more of these enriched clusters include bchemokine (C-C motif) ligand 35 duplicate 2 (ccl35.2), cinterleukin 12B, c (il12bc), d leukotriene B4 receptor 2b (ltb4r2b), echemokine (C motif) receptor 1b, duplicate 1 (xcr1b.1), fchemokine (C-C motif) receptor 11.1 (ccr11.1) and gchemokine (C-C motif) receptor 8.1 (ccr8.1). n = 6/group. Source data and individual data values are available in Additional file 2
