Fig. 6

ID: ZDB-IMAGE-220507-8
Publication: Reichmann et al., 2022 - Transcriptomic underpinnings of high and low mirror aggression zebrafish behaviours
All Figures: Figures for Reichmann et al., 2022


Figure Caption

Fig. 6

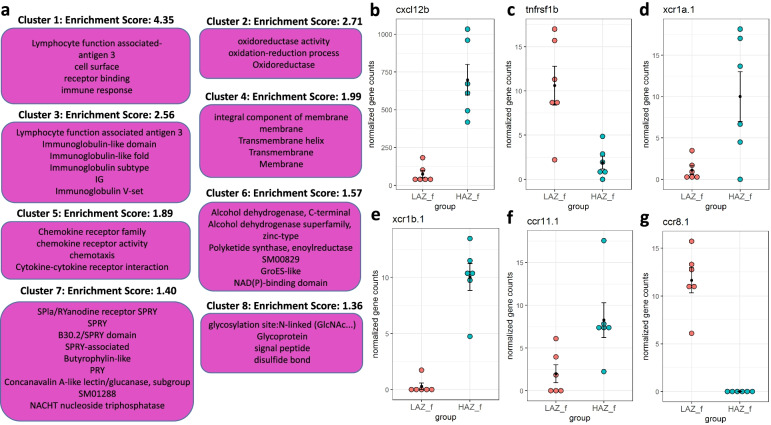

Enriched clusters and functional categories between the most aggressive female high aggression zebrafish (HAZf) and the least aggressive female low aggression zebrafish (LAZf). a Functional annotation clustering using DAVID pathway analysis revealed 8 significantly enriched clusters (enrichment score ≥ 1.3). Annotation terms related to each cluster are displayed in pink boxes. b–g DEGs with known important immunomodulatory functions present in one or more of these enriched clusters include bchemokine (C-X-C motif) ligand 12b (cxcl12b), ctumour necrosis factor receptor superfamily member 1B (tnfrsf1b), dchemokine (C motif) receptor 1a, duplicate 1 (xcr1a.1), echemokine (C motif) receptor 1b, duplicate 1 (xcr1b.1), fchemokine (C-C motif) receptor 11.1(ccr11.1) and gchemokine (C-C motif) receptor 8.1 (ccr8.1). n = 6/group. Source data and individual data values are available in Additional file 2
