Figure 13

ID
ZDB-IMAGE-220430-197
Source
Figures for Mat Zian et al., 2022
Figure Caption

Figure 13

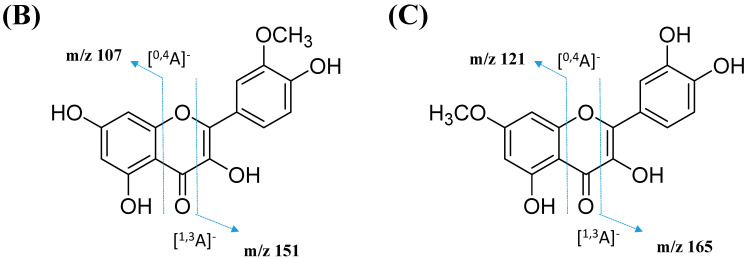

Figure 13. Proposed fragmentation mechanism in the MS/MS spectra recorded for the (A) mono-methoxyl group in negative ion mode of (B) isorhamnetin and (C) rhamnetin.
