Figure 1.

ID: ZDB-IMAGE-220430-19
Publication: Xue et al., 2022 - Cigarette smoke-induced oxidative stress activates NRF2 to mediate fibronectin disorganization in vascular formation
All Figures: Figures for Xue et al., 2022


Figure Caption

Figure 1.

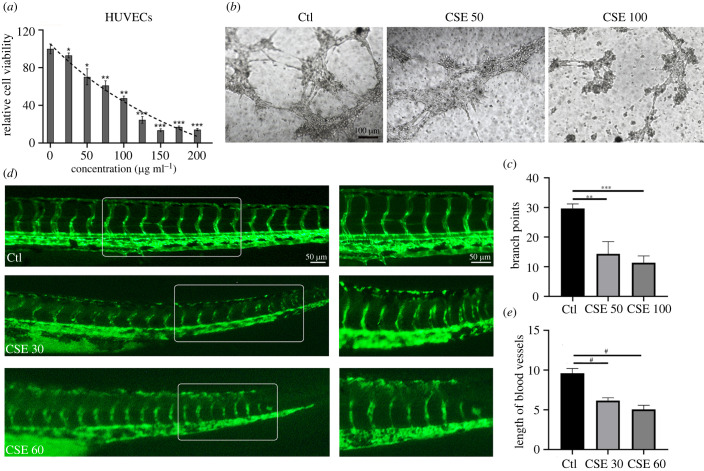

CSE disturbed vasculature formation in HUVECs and zebrafish. (a) HUVEC viability after exposure to CSE at different concentrations for 24 h. (b) Tube formation assay for HUVECs cultured on Matrigel with CSE treatment. (c) Quantification of the vascular branch points formed by HUVECs. (d) Representative images of vasculature formation in flk::GFP zebrafish treated with CSE for 48 h. (e) The vessel length was quantified from control and CSE-treated groups (n = 18). Data presented are the mean ± s.e.m. Unpaired Student's t-test, ^#p < 0.0001, ***p < 0.001, **p < 0.01, *p < 0.05.
