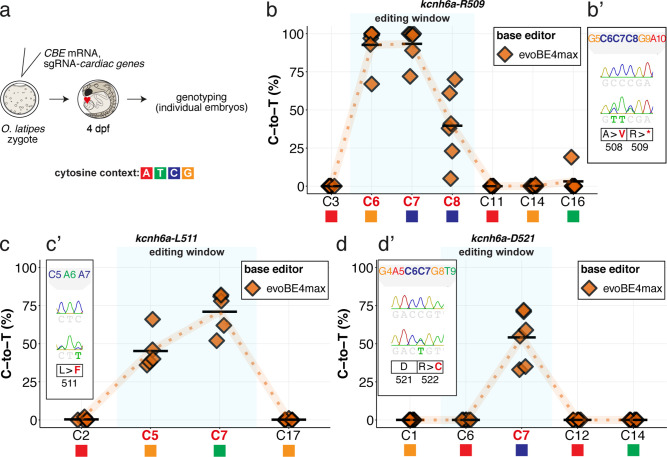

Figure 6—figure supplement 2. evoBE4max cytosine base editing enables efficient installation of PTCs or missense mutations at three additional <italic toggle='yes'>kcnh6a</italic> loci.

Summary of C-to-T conversion efficiencies relative to the target C protospacer position for Sample number: n = 6, 4, 6 respectively (b–d). To highlight the dinucleotide context, the nucleotide preceding the target C is shown by red (A), green (T), blue (C) and yellow (G) squares below the respective C.
