Figure 3—figure supplement 2. Strip1 is cell autonomously required to promote retinal ganglion cell (RGC) dendritic patterning.

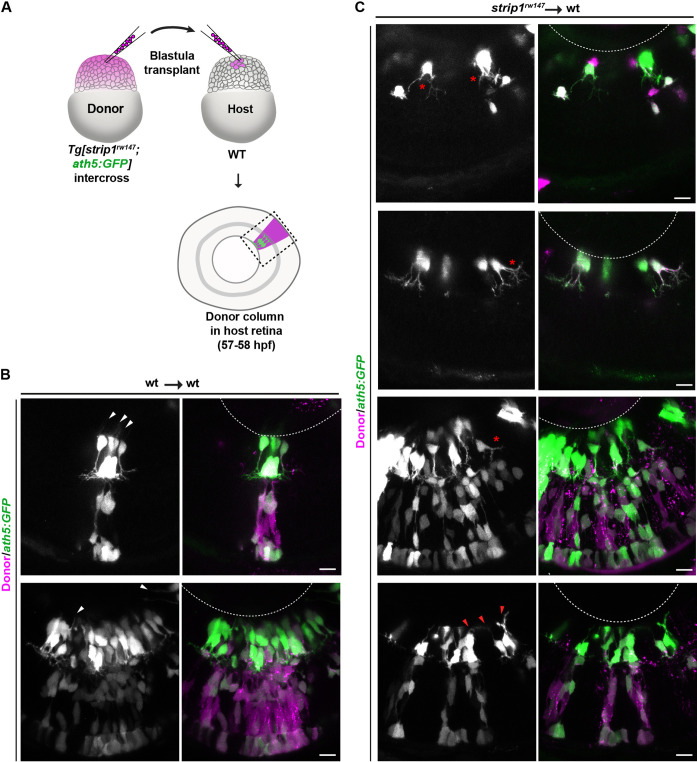

(A) Schematic drawings of cell transplantation design to evaluate cell autonomy of Strip1 in RGC dendritic patterning. Donor cells from strip1^rw147 heterozygous intercross carrying the transgene ath5:GFP (green) are labeled with dextran rhodamine (magenta) and transplanted into wild-type host embryos. (B) Maximum projection images of wild-type donor cells transplanted into wild-type host retinas as outlined in (A), arrowheads depict RGC axons. Scale bar, 10 μm. (C) Maximum projection images of strip1^rw147 mutant donor cells transplanted into wild-type host retina. Asterisks show dendritic projection defects, red arrowheads depict RGC axon defects. Scale bar, 10 μm.
