Figure 1—figure supplement 1.

ID: ZDB-IMAGE-220324-34
Publication: Saraswathy et al., 2022 - The E3 Ubiquitin Ligase Mindbomb1 controls planar cell polarity-dependent convergent extension movements during zebrafish gastrulation
All Figures: Figures for Saraswathy et al., 2022


Figure Caption

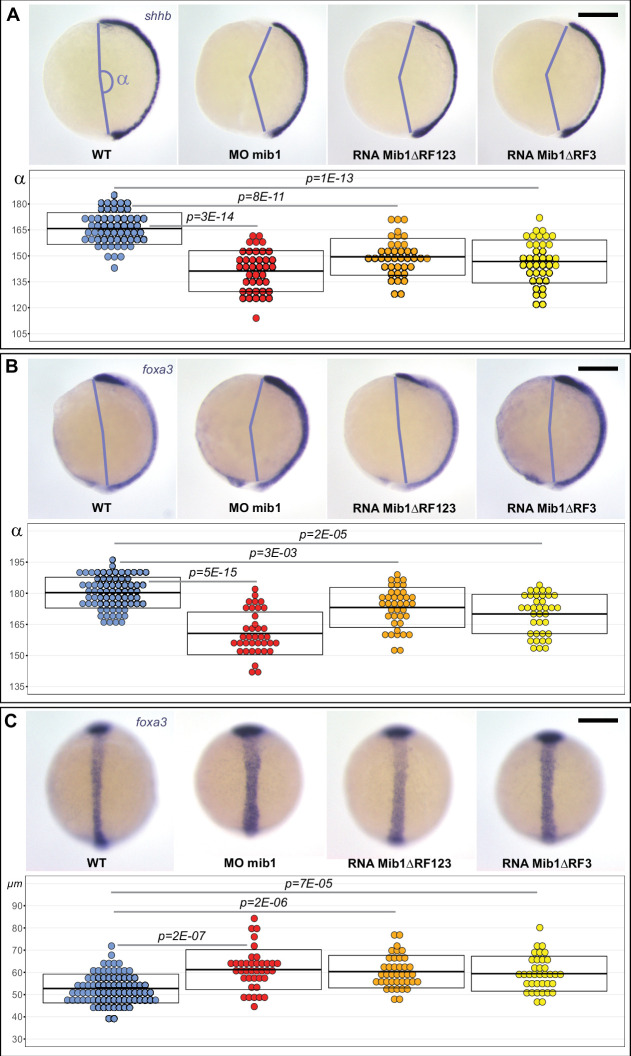

Figure 1—figure supplement 1. Mib1 knock-down impairs axial elongation.

(A,B) Axis elongation was quantified at bud stage by measuring the axis extension angle α using the marker genes shhb (A, expressed in the notochord) and foxa3 (B, expressed in notochord and prechordal plate). Axis extension is reduced following injection of mib1 morpholino (MO mib1) or RNAs encoding Mib1ΔRF123 or Mib1ΔRF3. Lateral views of bud stage embryos, anterior up, dorsal to the right. (C) Dorsal views of bud stage embryos stained for foxa3 also reveal a significant widening of the Notochord. Boxes represent mean values ± SD. See Figure 1—source data 1 for complete statistical information.
