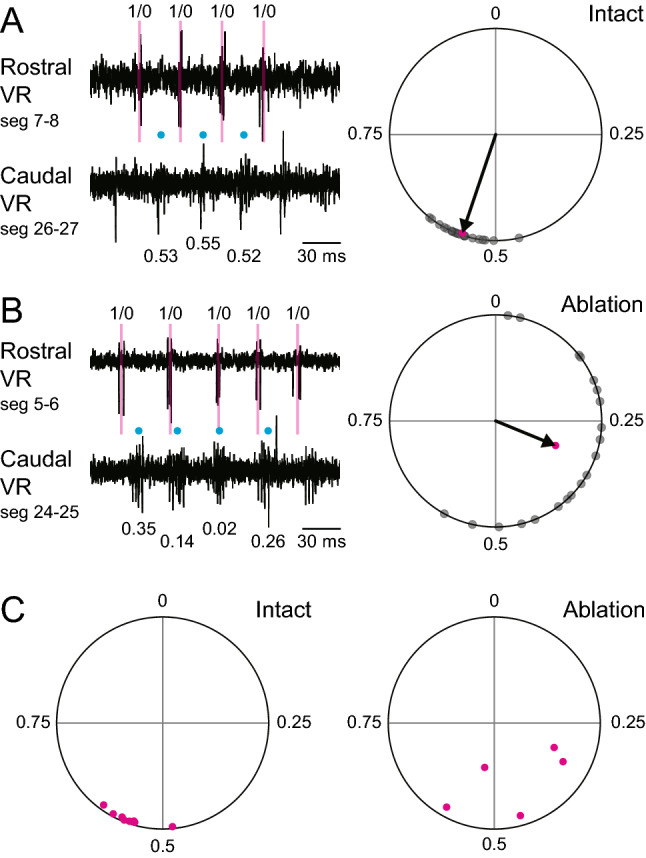

Anti-phasic relationship of the rostral and caudal motor activities is impaired in MCoD-ablated fish. (A) Left panel, An example of the dual (rostral and caudal) VR recordings. For the phase analysis, the middle time point of a rostral VR activity was assigned a phase value of 0, and that of the next VR activity was assigned a phase value of 1. Right panel, Circular plot of 20 randomly selected caudal VR activities with respect to rostral VR activity during fictive swimming. (B) Same as (A) but for MCoD-ablated fish. (C) Left panel, Circular plot for the recordings from intact fish (n = 8). Right panel, Circular plot for the recordings from MCoD-ablated fish (n = 5).
