ZFIN Image: Del Vecchio et al., 2021, Fig. 2


Figure Caption

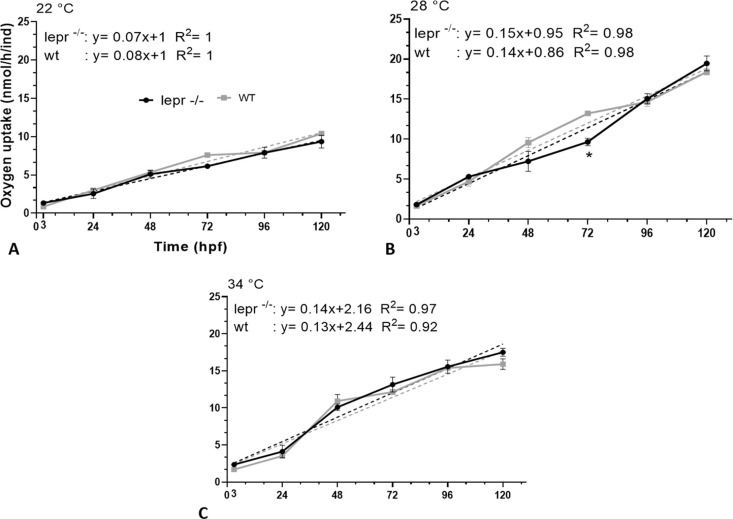

Fig. 2 Oxygen uptake in lepr−/− vs. wt embryos/early larvae at 22 (A), 28 (B) and 34 (C) °C from 3 to 120 hpf (endogenous feeding period). Each time-point is the mean of 6 vials, each containing 10 embryos (±SE). Two-way ANOVA shows significant effect of developmental age [F (5, 53) = 115.2; p < 0.0001] but not genotype [F (1, 53) = 3.342; p > 0.05] at 22 °C; significant effect of developmental age [F (5, 56) = 201.1; p < 0.0001] but not genotype [F (1, 56) = 2.779; p > 0.05] at 28 °C; significant effect of developmental age [F (5, 54) = 164.7; p < 0.0001] but not genotype [F (1, 54) = 2.102; p > 0.05] at 34 °C. A post-hoc Turkey’s multiple comparison was used to assess specific pairwise differences (* = p < 0.05).
