FIGURE 3

ID: ZDB-IMAGE-220303-43
Publication: Demirci et al., 2022 - Brain Regeneration Resembles Brain Cancer at Its Early Wound Healing Stage and Diverges From Cancer Later at Its Proliferation and Differentiation Stages
All Figures: Figures for Demirci et al., 2022


Figure Caption

FIGURE 3

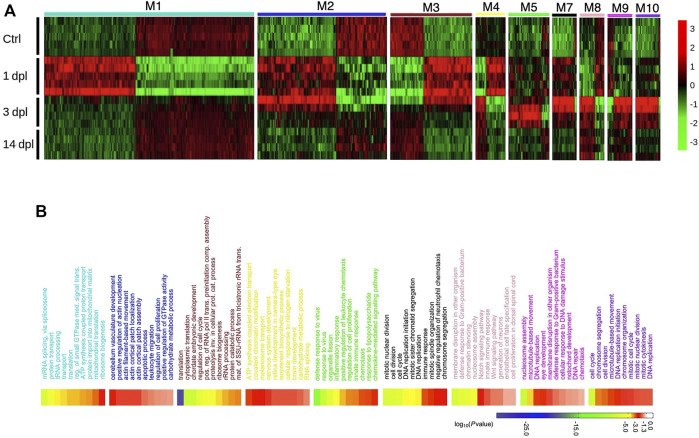

Network analysis of zebrafish brain regeneration at three stages reveals stage-specific modules. (A) Heatmap representing relative expression (z-score) of genes that are enriched in each module for the three stages of the adult zebrafish brain regeneration. Each row represents a sample, and each column shows a single gene. Red and green shades show high or low relative expressions, respectively. (B) DAVID was used to show the most significantly enriched GO-BP terms based on the transcriptional changes of each significant module and their associated enrichment p-values for Top 10 GO-BP terms. The heatmap scale shows log₁₀ of the ease p-values for the most significantly enriched GO terms. dpl: days post-lesion, ctrl: control.
