ZFIN Image: Bergen et al., 2022, Fig. 3


Figure Caption

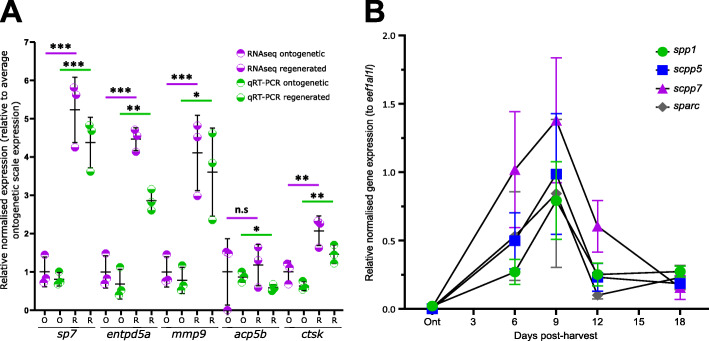

Fig. 3

Validation of RNA-sequencing dataset and SCPP repertoire gene expression during scale regeneration. A Comparison of relative expression levels of qRT-PCR (unpaired t test) and transcriptomic analysis (false discovery rate) of selected amplicons. Total RNA used for RNA-seq experiment was used. B Quantitative real-time PCR (qRT-PCR) of secretory calcium-binding protein (SCPP) family genes that were differentially expressed in the RNA-seq dataset (n = 4 fish). Two-way ANOVA analysis showed that there was no interaction factor variance (p = 0.882) but that time (f(4) = 11.05, p=0.001) was the only independent statistically significant effect on amplicon expression

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ BMC Biol.
