Figure 1

ID: ZDB-IMAGE-220131-4
Publication: La Spina et al., 2021 - Multiple Mechanisms Converging on Transcription Factor EB Activation by the Natural Phenol Pterostilbene
All Figures: Figures for La Spina et al., 2021


Figure Caption

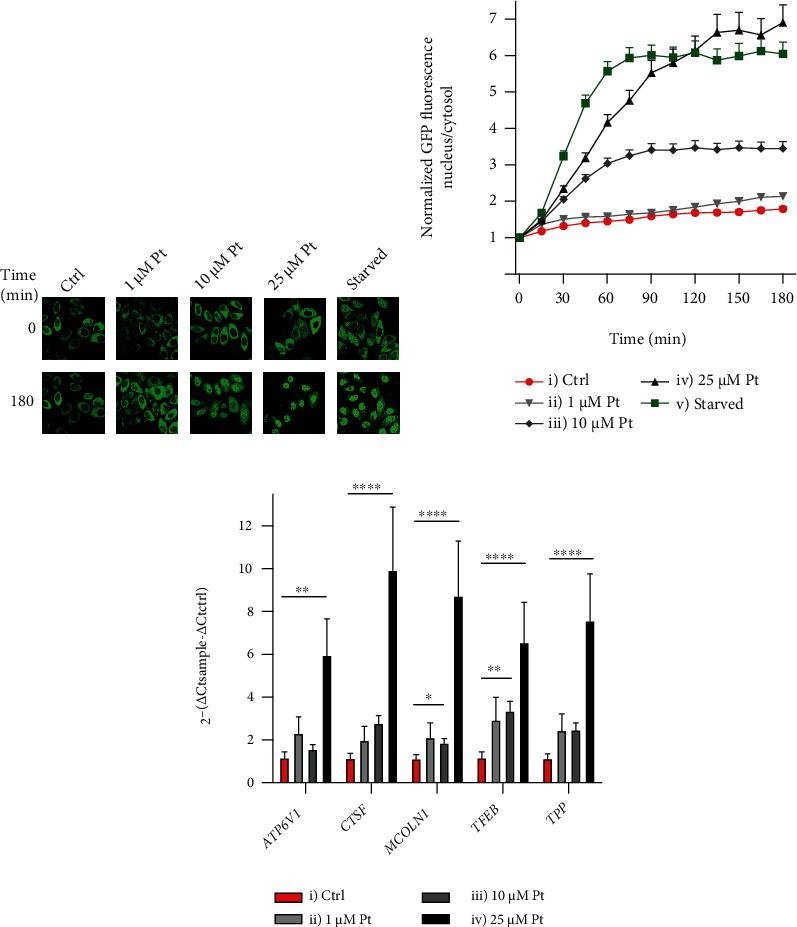

Figure 1 Pt induces translocation and activation of TFEB in HeLa cells. TFEB migration kinetics: (a) representative images of HeLa cells overexpressing TFEB-GFP, treated as indicated, and (b) plot of the nucleus/cytosol green fluorescence ratios after the indicated additions or medium exchange at time zero.Mean values + SEM; N ≥ 55 cells for each time point and condition, observed in at least 3 separate experiments. Comparison with Ctrl: p < 0.0001 rom 15 min for curves (iii), (iv), and (v); p < 0.05 from 135 min for curve (ii). (c) Pt enhances the transcription of TFEB and its target genes. Mean values + SEM; N ≥ 5. Horizontal bar extremities correspond to the columns to be compared.
