Figure 2

ID: ZDB-IMAGE-211219-32
Publication: Brun et al., 2021 - Orphan cytochrome P450 20a1 CRISPR/Cas9 mutants and neurobehavioral phenotypes in zebrafish
All Figures: Figures for Brun et al., 2021


Figure Caption

Figure 2

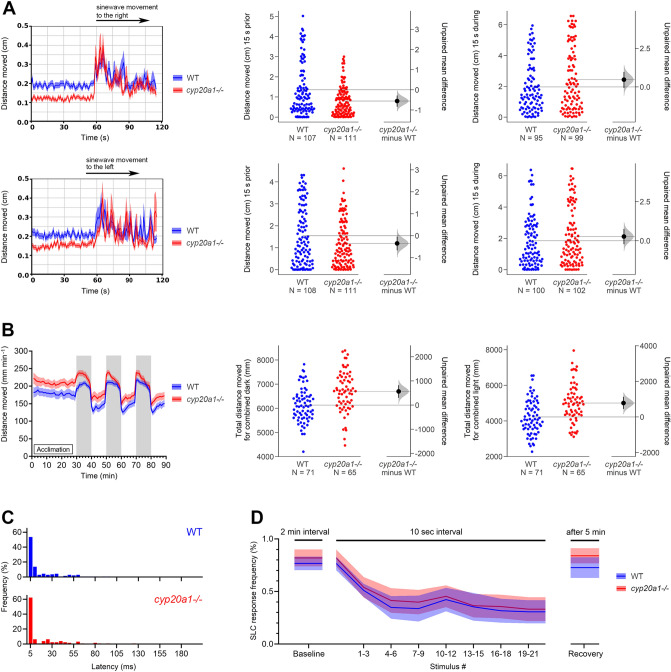

Larval behavior. (A) Optomotor response of wild-type (WT) and cyp20a1 wh⁶¹ mutant larvae (n = 95–111, depending on tracking success). (B) The locomotor activity of cyp20a1-/- wh⁶¹ mutant larvae (n = 65) during the dark and the light phases in comparison to the WT larvae (n = 71). Increased movement is interpreted as hyperactivity. (C) Rapid startle response to the highest acoustic stimulus (43 dB) of WT (n = 138) and cyp20a1 wh⁶¹ (n = 127) larvae. (D) Habituation to the highest acoustic stimulus of WT and cyp20a1-/- wh⁶¹ mutant larvae measured as short-latency C-bend response (SLC; < 15 ms) per plate (n = 11) and depicted as mean ± 95 CI. All individual data points represent biologically independent replicates from three independent experiments.

Figure Data

Phenotype details
