Fig. 4

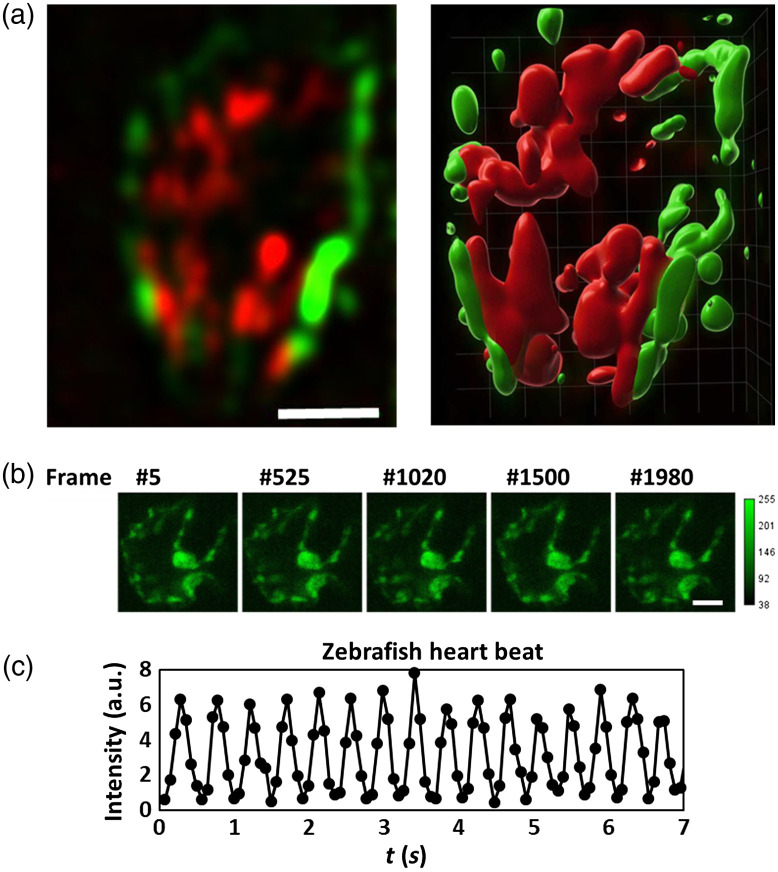

Two-color 2p LSFM with axicon imaging of a zebrafish heart beating. (a) A slice of a volume image and its 3D rendering image (10 slices; 100𝜇m×100𝜇m×20𝜇m $100 μ m \times 100 μ m \times 20 μ m$ ) recorded at 10 volumes per second. The transgenic zebrafish Tg(fli1a:EGFP; gata1:DsRed) expressed EGFP in the vascular endothelium and Dsred in RBCs. (b) Representative time-lapse images of a zebrafish heart and (c) zebrafish beating heart dynamics. EGFP fluorescence signal was recorded within an area of the heart as a function of time. The measured heartbeat was 2.2 Hz at 20°C. Scale bar: 30𝜇m $30 μ m$ .
