ZFIN Image: He et al., 2021, Fig. 4


Figure Caption

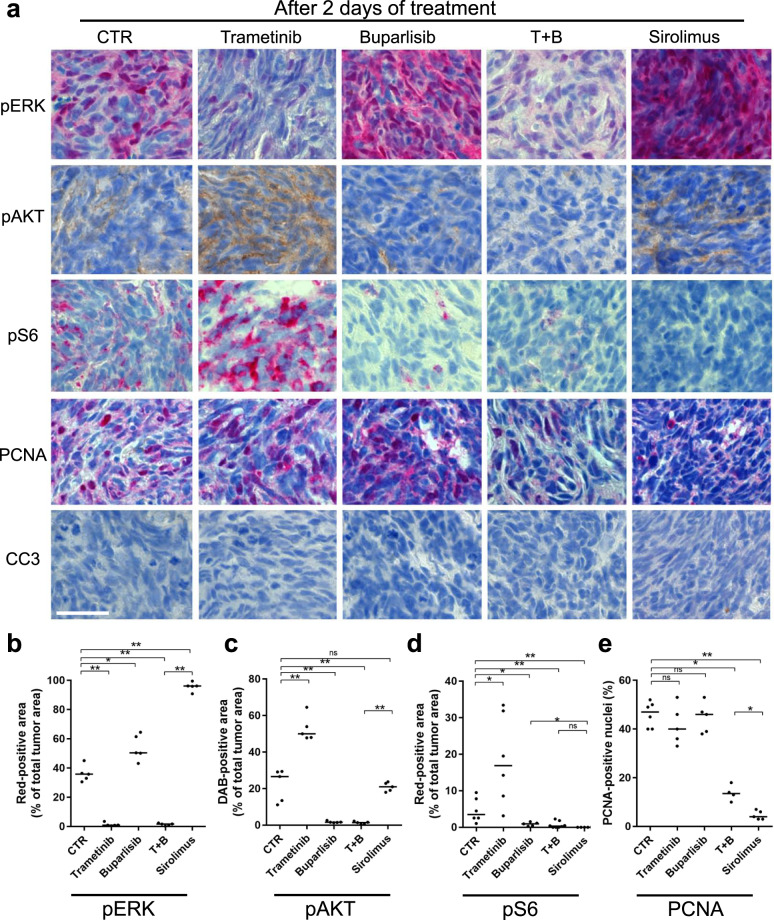

Fig. 4 Sirolimus strongly inhibits proliferation in <italic>nf1/pten</italic>-mutant melanomas.

a Representative tissue sections from a transplanted nf1/pten-mutant melanoma tumor after 2 days of treatment with DMSO (CTR), 80 nM trametinib, 2 μM buparlisib, the combination of 80 nM trametinib and 2 μM buparlisib, or 20 μM sirolimus. Sections were immunostained using antibodies to detect pERK, pAKT, pS6, PCNA, and cleaved caspase-3 (CC3). pERK-, pAKT- and pS6-positive tumor areas, as well as PCNA-positive nuclei, are quantified post-treatment in (b–e). “T + B” refers to trametinib plus buparlisib. ns p > 0.05, *p < 0.05, **p < 0.01 by Mann–Whitney test. Scale bar = 20 μm.
