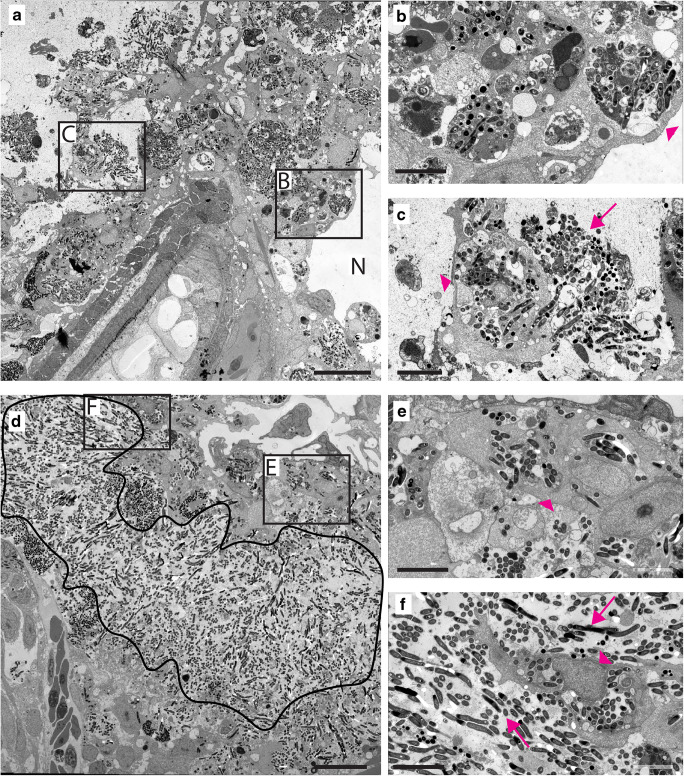

Granuloma structures in myd88^-/- larvae consist mainly of extracellular Mm. a TEM image of a granuloma in representative myd88^+/+ larvae, showing the necrotic centre (N) and aggregates of Mm in the immune cells. b,c Higher magnification of regions indicated in (a), showing infected cells (arrowheads) and extracellular Mm (arrows). d TEM image of a granuloma in representative myd88^-/- larvae showing the area with extracellular Mm (black line). e,f Higher magnification of region indicated in (d), showing extracellular bacteria and infected cells (arrowheads). n = 3 per group, the scale bars in (a)–(d) (20 μm) and in (b)–(c) and (e)–(f) (10 μm)
