Figure Caption
Fig 1

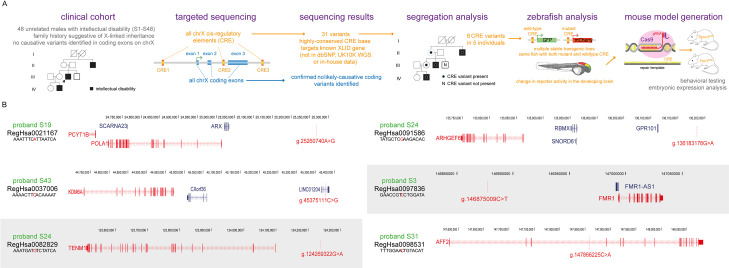

(A) A diagrammatic summary of the experimental pipeline followed in this paper. (B) Schematic showing the genomic region of the six genomic variants in the five probands (S19, S24, S43, S3 and S31) indicating the location of the XLID-associated CRE variants along with their predicted target genes indicated in red, genomic coordinates from h19/GRCh37 genome build. The variants highlighted by grey box were used to make mouse models.
