Figure Caption

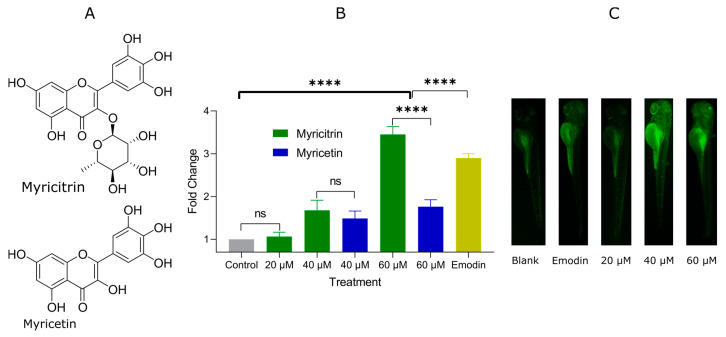

Figure 2 Myricitrin and myricetin-induced 2-NBDG uptake. (A) Chemical structures of myricitrin and myricetin. The structures were identified on the basis of HR MS/MS (Figure S2) and NMR spectra (Figure S3). (B) Fold change of 2-NBDG fluorescence measured by ImageJ (**** p < 0.001, ns, no statistical difference). The higher fold change indicates the better promotion of glucose uptake. (C) Fluorescent microscopy images after treatment of myricitrin and emodin.
