Figure 3

ID
ZDB-IMAGE-210808-9
Source
Figures for Dahlén et al., 2021
Figure Caption

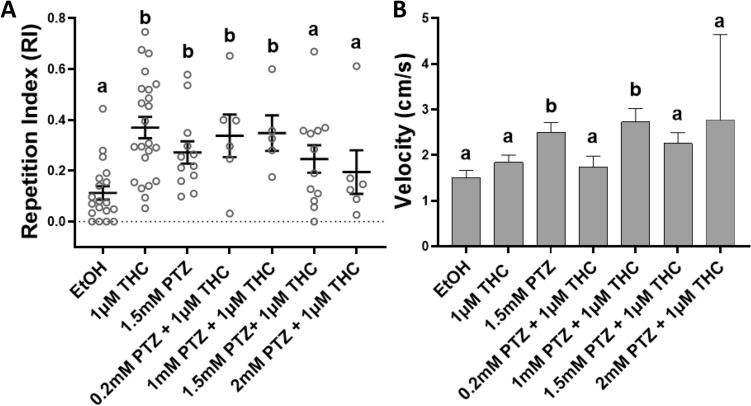

Figure 3

Co-administration of Tetrahydrocannabinol (THC) and GABAA receptor antagonist pentylenetetrazol (PTZ) affects the THC-induced behavioral stereotypy in adult zebrafish. (A) At 1.5 mM PTZ with 1 μM THC the THC-induced Repetition Index (RI), calculated as a mean ± SEM, was not statistically different from the controls (EtOH) (ns p = 0.1578). (B) 1.5 mM PTZ and 1 mM PTZ with 1 μM THC caused significant increases in swimming velocity compared to controls (EtOH) (*p < 0.05). Controls EtOH (0.0015%) (n = 19), 1 μM THC (n = 23), 1.5 mM PTZ (n = 12), 0.2 mM PTZ + 1 μM THC (n = 6), 1 mM PTZ + 1 μM THC (n = 5), 1.5 mM PTZ + 1 μM THC (n = 12) and 2 mM PTZ + 1 μM THC (n = 6). Mean RI values of 0.2 mM PTZ (n = 6) and 2 mM PTZ (n = 6), were similar to 1.5 mM PTZ. Values without a letter in common are statistically different to the control condition (p < 0.05, Kruskal–Wallis and Dunn's multiple comparisons test).

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Sci. Rep.
