Figure 7.

ID: ZDB-IMAGE-210802-44
Publication: Schroeder et al., 2021 - Distinct Synaptic Transfer Functions in Same-Type Photoreceptors
All Figures: Figures for Schroeder et al., 2021


Figure Caption

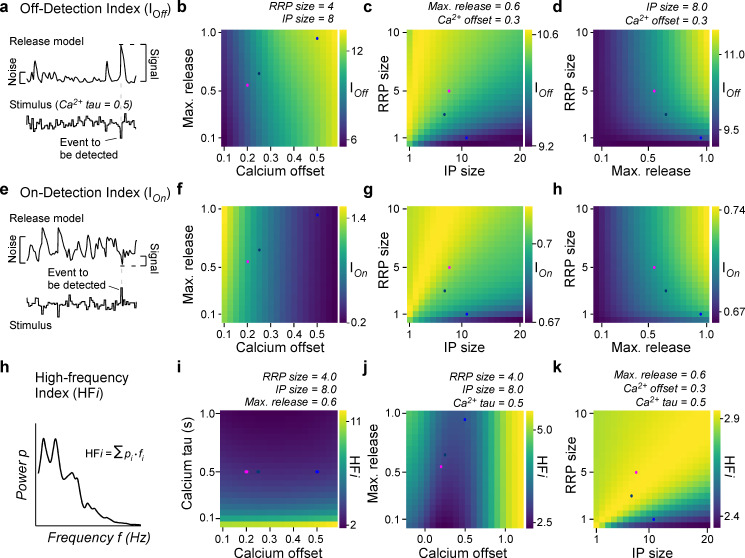

Figure 7. General rules of ribbon tuning: event detection and high-frequency encoding.

(a) An off-detection index (I_Off) measures the model’s baseline noise-normalised response amplitude to an off-event in the stimulus as indicated (Materials and methods). (b–d) I_Off for different parameter combinations. (e–h) As (a–d), but for an on-detection index (I_On). (h) The high-frequency index (HFi) is a weighted sum of the discretised power spectrum and indicates the behaviour in a high-frequency regime. (i–k) HFi for different parameter combinations. The fixed parameters are shown as titles in each panel. Note the different colour scales between panels. Further note that in (j) we explored the x₀ parameter space up to extreme response behaviour, which may not be physiologically plausible.
