Fig. 4

ID: ZDB-IMAGE-210729-35
Publication: Ahi et al., 2021 - Transcriptional study reveals a potential leptin-dependent gene regulatory network in zebrafish brain
All Figures: Figures for Ahi et al., 2021


Figure Caption

Fig. 4

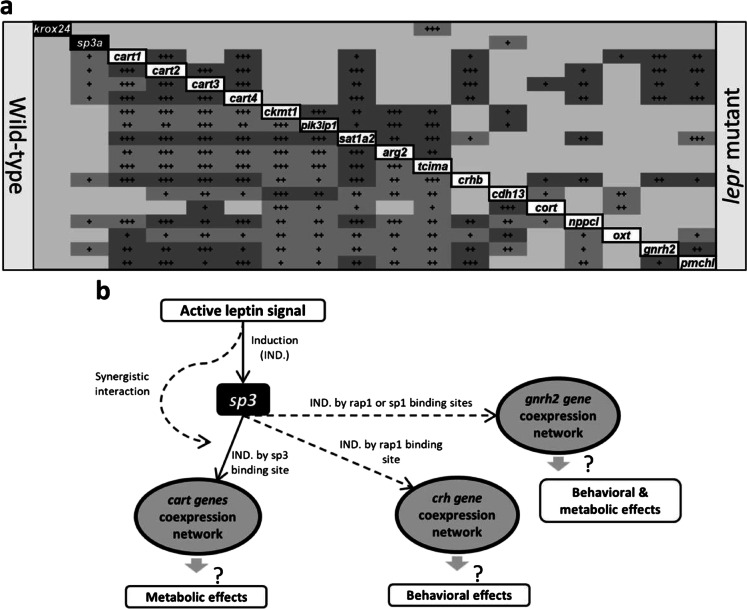

Expression correlations of cart, crhb and gnrh2 related gene regulatory networks and their potential regulatory connections. (a) Pairwise expression correlations between the members of the cart related gene regulatory network in the brain of wild-type and lepr mutant zebrafish in the fasting-refeeding experiment. The plus signs indicate positive Pearson correlation coefficients, and 1 to 3 signs represent significant levels of P < 0.05, P < 0.01 and P < 0.001. The pairwise correlations delineated with black borders are similar between the two genotypes. (b) A schematic illustration of a potential regulatory interaction between leptin signal and cart-/crh-/gnrh2-coexpression modules mediated by sp3a in zebrafish brain
