Figure 2

ID: ZDB-IMAGE-210725-52
Publication: Andreana et al., 2021 - Toward Quantitative in vivo Label-Free Tracking of Lipid Distribution in a Zebrafish Cancer Model
All Figures: Figures for Andreana et al., 2021


Figure Caption

Figure 2

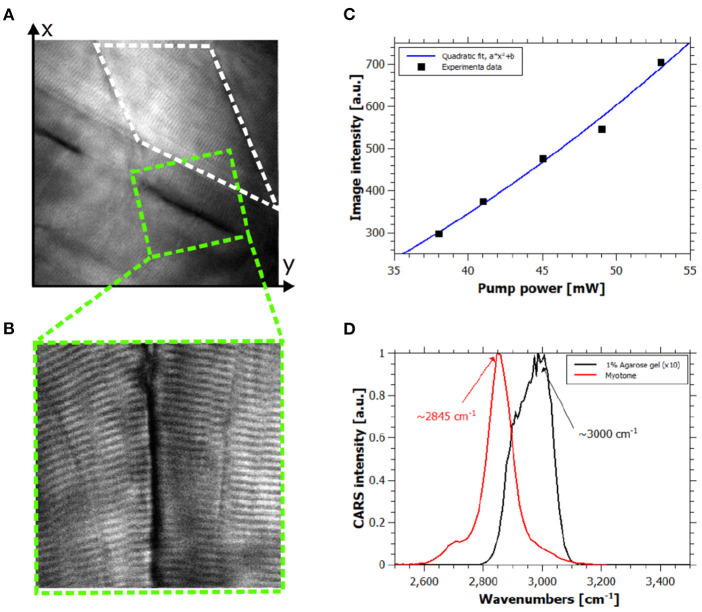

In vivo hyperspectral coherent anti-Stokes Raman scattering (CARS) images. (A) CARS image of healthy zebrafish larva at 120 hpf at 2,845 cm⁻¹, field of view (FOV) is 80 × 80 μm². (B) High-resolution CARS image of the green dashed square in (A) showing contrast coming from the lipid content of the muscle cells, FOV is 30 × 30 μm². (C) Quadratic power dependency of the CARS signal of the white dashed rectangle area in (A) respect to the pump power intensity. R-squared of the quadratic fit is 0.9889. (D) Spectral information provided by hyperspectral CARS allowing discrimination between the resonant signal of lipids and 1% agarose gel.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Front Cell Dev Biol
