FIGURE 3

ID: ZDB-IMAGE-210718-32
Publication: Shimizu et al., 2021 - Differential Regenerative Capacity of the Optic Tectum of Adult Medaka and Zebrafish
All Figures: Figures for Shimizu et al., 2021


Figure Caption

FIGURE 3

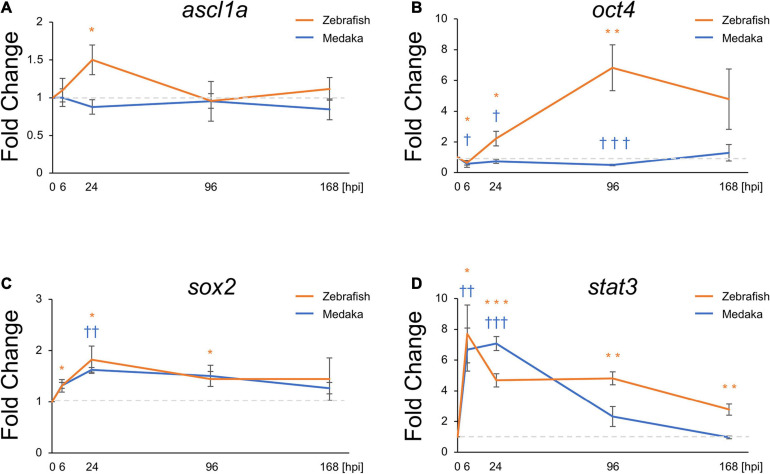

Pro-regenerative transcriptional factors are differentially expressed between the injured medaka and zebrafish. Quantitative polymerase chain reaction analysis of the pro-regenerative transcriptional factors ascl1a (A), oct4 (B), sox2 (C), and stat3 (D). Graphs indicate the relative gene expression in the injured tectum from 6 to 168 h post injury (hpi) compared to the uninjured tectum (n = 4). Statistical analyses between the uninjured and injured hemispheres at each time point were evaluated by unpaired Student’s t-tests. We used * for zebrafish and ^† for medaka to indicate significant difference. Statistical significance was defined as * and ^†P < 0.05; ** and ^††P < 0.01; *** and ^†††P < 0.001.
